Routerul de exterior OTD140 are o carcasa din plastic IP55 dedicata si durabila si un suport de montare integrat, ceea ce face ca acest router 4G de exterior sa fie usor de instalat si capabil sa reziste la conditiile de mediu exterioare. In plus, acest router de exterior este echipat cu conectivitate LTE Cat 4, compatibilitate cu RMS pentru capacitati de gestionare de la distanta si doua porturi Ethernet PoE-in/out.
| DATA TO SERVER | |
| Protocol | HTTP(S), MQTT, Azure MQTT |
| IOT PLATFORMS | |
| Azure IoT Hub | Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type |
| Cloud of Things | Permite monitorizarea: Device data, Mobile data, Network info, Availability |
| Cumulocity | Permite monitorizarea: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength |
| ThingWorx | Permite monitorizarea: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| PoE | |
| PoE Max Power per Port (at PSE) | 15 W Max (power supply unit dependent) |
| PoE ports | 1 x PoE In and 1 x PoE Out |
| PoE standards | 802.3af/at |
| MOBILE | |
| APN | Auto APN |
| Modul GSM | 4G (LTE) - LTE Cat 4 150 Mbps DL, 50 Mbps UL; 3G - 21 Mbps DL, 5.76 Mbps UL; 2G - 236.8 kbps DL, 236.8 kbps UL |
| SIM switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
| Status | IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| ETHERNET | |
| LAN | 2 x ETH ports (can be configured as WAN), 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| NETWORK | |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) |
| VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| DHCP | Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards |
| SSHFS (optional) | Posibilitatea de a monta un sistem de fi?iere la distan?? prin protocolul SSH |
| VPN | |
| OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
| CARACTERISTICI | |
| FLASH storage | 16 MB |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB |
| MONITORIZARE & ADMINISTRARE | |
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status |
| FOTA | Firmware update din server, automatic notification |
| SSH | SSH (v1, v2) |
| FIRMWARE CUSTOMIZATION | |
| Operating system | RutOS (OpenWrt bazat pe Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++, and Python, Java in Package manager |
| ALIMENTARE | |
| Input voltage range | 42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection |
| Power consumption | Idle: < 2.5 W / Max: < 6 W / PoE Max < 21 W |

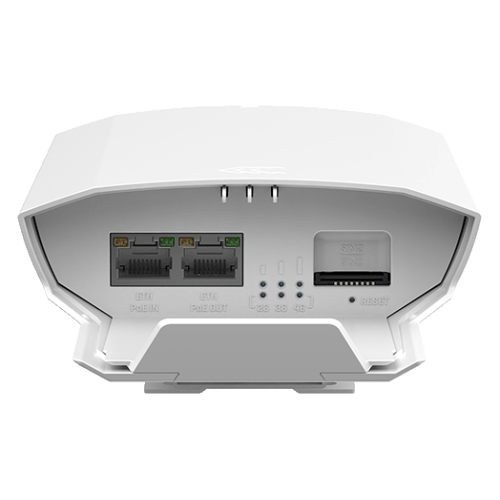

| PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |
| Antennas | 2 x Internal antennas |
| Ethernet | 2 x RJ45 ports, 10/100 Mbps |
| Status LEDs | 3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs |
| SIM | 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V |
| Reset | Reboot/User default reset/Factory reset button |
| PHYSICAL SPECIFICATION | |
| Dimensions (W x H x D) | 110 x 49.30 x 235 mm |
| Casing material | Plastic (PC+ASA) |
| Weight | 855 g |
| Mounting options | Suport de montare (pentru suprafata plana verticala sau montare pe stalp) |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C la 75 °C |
| Ingress Protection Rating | IP55 |
| REGULATORY & TYPE APPROVALS | |
| Regulatory | CE, UKCA, EAC, UCRF, RCM |

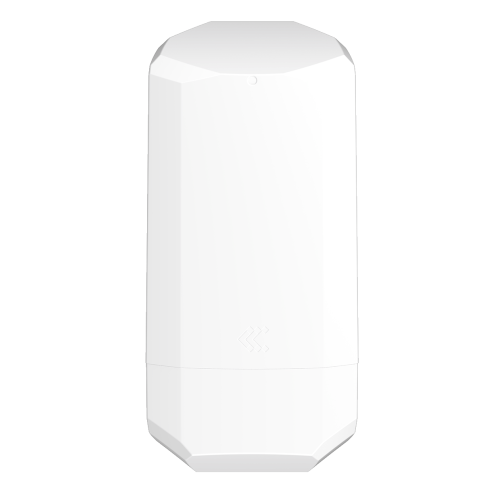

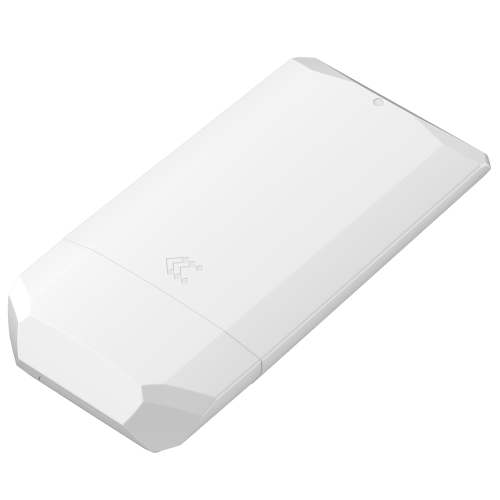

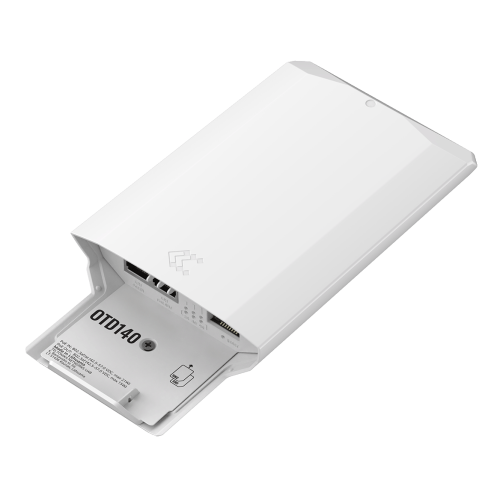

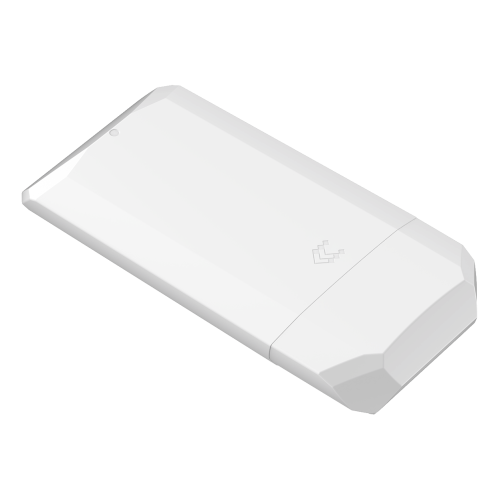

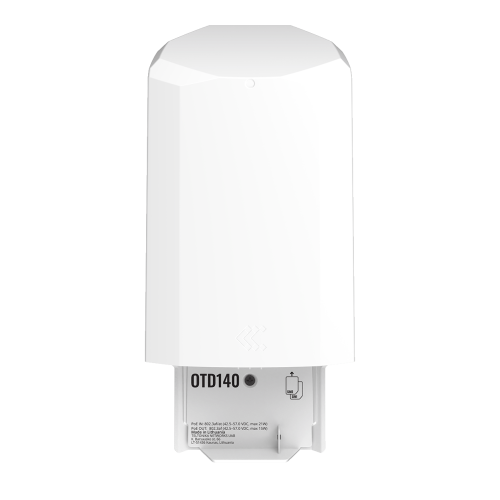

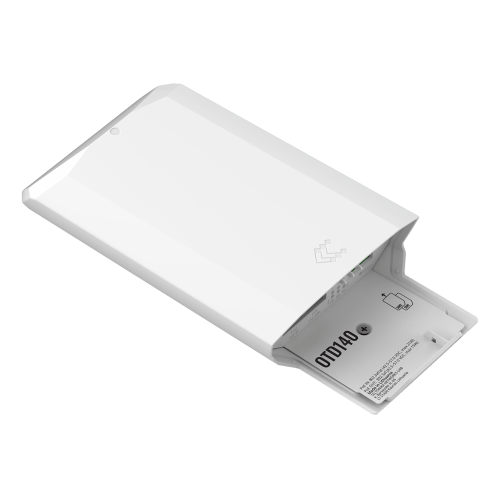

Teltonika OTD140
- Cod produs: OTD140
- Disponibilitate: 1
Etichete: OTD140
