5G MOBILE MIMO ANTENNA
Connector type and count	4x SMA Male
Frequency Range	617 - 960 / 1710 - 2690 / 2900 - 4200 MHz
Gain	4.0 dBi
Impedance	50 ?
Polarization	Linear
V.S.W.R	?3.0
GNSS ANTENNA
Connector type and count	SMA Male
Frequency range	1164 - 1300 / 1559 - 1610 MHz
Impedance	50 ?
LNA Gain	40 ± 2 dB
Polarization	RHCP
Supply voltage	3 - 12 VDC
V.S.W.R	?2.0
MECHANICAL/ENVIRONMENTAL

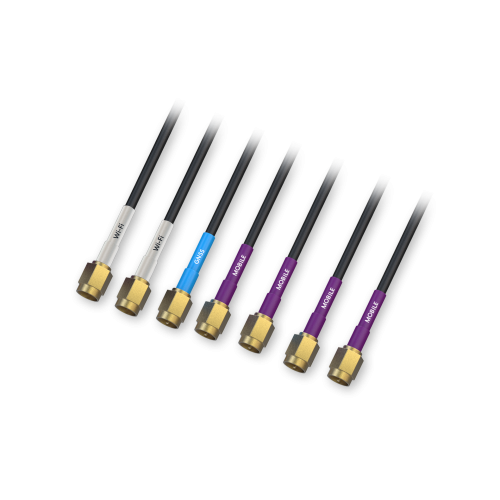

Cable	7 x LMR100, 3000 mm
Housing dimensions	189 x 182 x 85 mm
Mounting method	Screw
Operating temperature	-40 °C - +85 °C
Radome ingress projection rating	IP67 (exclude cable outlet)
Radome material	UV-Resistant ABS/PC
Recomended mounting dimensions	Hole ø28 mm, panel thickness MAX 8 mm
RoHS Compliant	?
Weight	960 ± 30 g
WIFI MIMO ANTENNA
Connector type and count	2x RP SMA Male
Frequency range	2400 - 2483.5 / 4900 - 5925 MHz
Gain	4.0 dBi
Impedance	50 ?
Polarization	Linear
V.S.W.R	?2.5

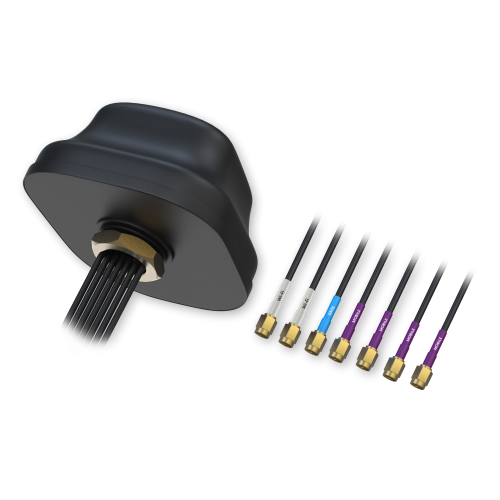

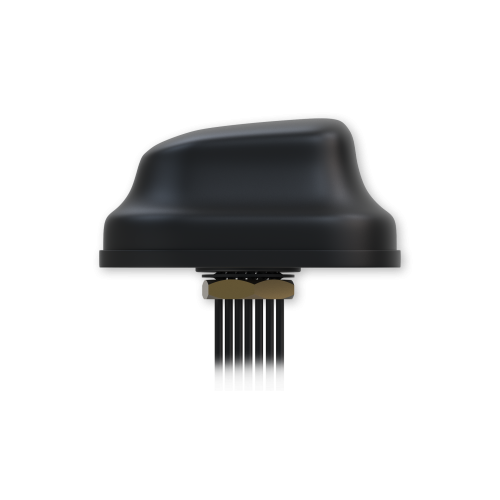

5G COMBO MIMO MOBILE/GNSS/WIFI ROOF SMA ANTENNA
