| GNSS ANTENNA |
| Connector type and count |
SMA Male
|
| Current Consumption |
15 mA
|
| Frequency range |
1575 ~ 1610 MHz
|
| Impedance |
50 ?
|
| LNA Gain |
28 ± 2 dB
|
| Polarization |
RHCP
|
| Supply voltage |
3.0 – 5.0 VDC
|
| LTE MIMO ANTENNA |
| Connector type |
2x SMA Male
|
| Frequency range |
698 ~ 960, 1710 ~ 2690 MHz
|
| Gain |
3.0 dBi
|
| Impedance |
50 ?
|
| Polarization |
Linear
|
| VSWR |
3.0
|
| MECHANICAL/ENVIRONMENTAL |
| Cable |

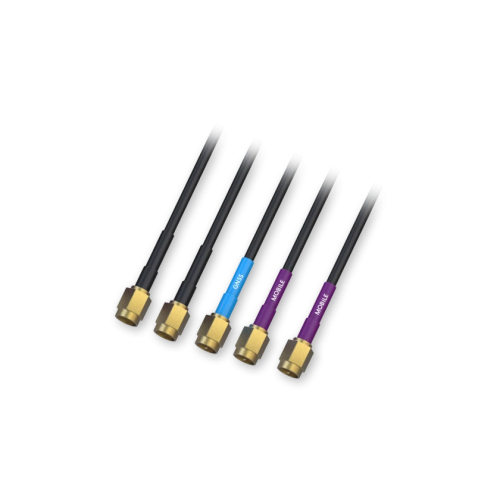

5x RG174, 3000 mm
|
| Housing dimensions |
Ø 110 x 55 mm
|
| Mounting method |
Screw |
| Radome ingress projection rating |
IP65 |
| Radome material |
Black ABS
|
| RoHS Compliant |
?
|
| Weight |
550 g
|
| PARAMETER |
| LNA noise figure |
1.5 dB
|
| LNA VSWR |
2.0
|
| WIFI MIMO ANTENNA |
| Connector type and count |
2x RP-SMA Male
|
| Frequency range |
2400 ~ 2483, 4900 ~ 5825 MHz
|
| Gain |
2.0 dBi
|
| Impedance |
50 ?
|
| Polarization |
Linear |

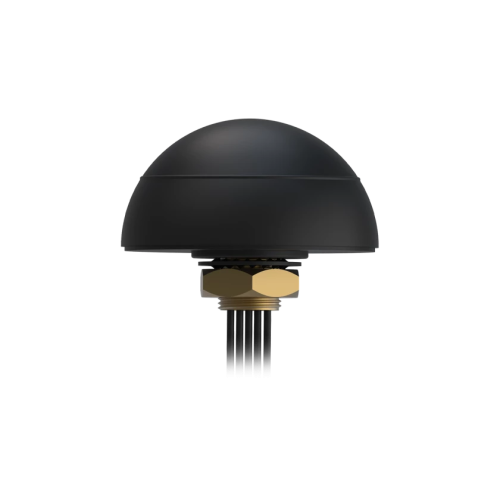

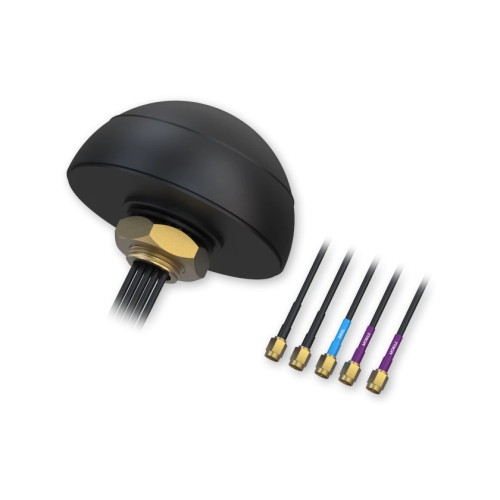

COMBO MIMO MOBILE/GNSS/WIFI ROOF SMA ANTENNA
- Cod produs: PR1KCO28
- Disponibilitate: 1
Etichete:
COMBO MIMO MOBILE/GNSS/WIFI ROOF SMA ANTENNA
