| GNSS ANTENNA |
| Connector type and count |
SMA Male
|
| Current Consumption |
< 15 mA
|
| Frequency range |
1575 - 1610 MHz
|
| Impedance |
50 ?
|
| LNA Gain |
28 dBi
|
| Polarization |
RHCP |
| Supply voltage |
2.7 - 5.0 ± 0.5 VDC
|
| V.S.W.R |
1.5 : 1
|
| LTE MIMO ANTENNA |
| Connector type |
SMA Male
|
| Frequency range |
617 - 960 / 1710 - 2690 MHz
|
| Gain |
3.5 dBi
|
| Impedance |
50 ?
|
| Polarization |
Linear
|
| MECHANICAL/ENVIRONMENTAL |
| Cable |
3 x RG174, 3000 mm
|
| Housing dimensions |
Ø 80.5 x 15.2 mm
|
| Mounting method |
Screw
|
| Operating temperature |
-40 ~ +85 °C
|
| Radome ingress projection rating |
IP67
|
| Radome material |
ABS |
| RoHS Compliant |
? |
| Weight |
215 g
|
| PARAMETER |
| Radiation pattern type |
Omni - Directional
|
| WIFI MIMO ANTENNA |
| Frequency range |
2350 - 2500 MHz
|
| Gain |
2.5 dBi
|
| Impedance |
50 ?
|
| Polarization |
Linear
|
| V.S.W.R |
1.5 : 1
|

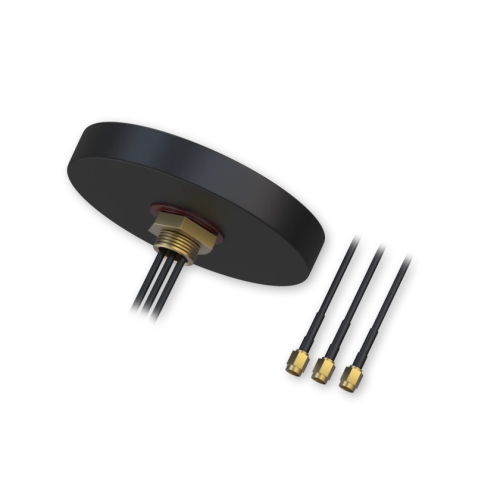

COMBO SISO MOBILE/GNSS/WIFI ROOF SMA ANTENNA
- Cod produs: PR1KCS28
- Disponibilitate: 2
Etichete:
COMBO SISO MOBILE/GNSS/WIFI ROOF SMA ANTENNA
