RUT206 este un router industrial compact care suporta interfetele seriale RS232 si RS485, impreuna cu intrari PoE active si pasive. Designul sau robust, intrarea de alimentare cu 2 pini si stocarea de date extensibila printr-un slot microSD il fac o alegere ideala pentru o gama larga de aplicatii IoT si M2M. Acest router 4G Cat 4 vine cu software-ul open-source RutOS si suporta protocoale industriale cheie precum Modbus, DNP3 si DLMS.
| MOBILE | |
| 3GPP Release | Release 9 |
| APN | Auto APN |
| Band management | Band lock, Used band status display |
| Passthrough | Routerul atribuie adresa sa IP WAN mobila unui alt dispozitiv din LAN. |
| USSD | Accepta trimiterea si citirea mesajelor Unstructured Supplementary Service Data. |
| Modul GSM | 4G LTE Cat 4 pana la 150 DL/50 UL Mbps; 3G pana la 21 DL/5.76 UL Mbps; 2G pana la 236.8 DL/236.8 UL kbps |
| SIM switch | 2 cartele SIM, comutare automata in cazuri: semnal slab, limita de date, limita de SMS, roaming, fara retea, retea refuzata, esec conexiune de date, protectie inactivitate SIM |
| Bridge | Conexiune directa (bridge) intre ISP mobil si dispozitiv din LAN |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| Black/White list | Lista neagra/alba a operatorilor (pe tara sau operatori separati) |
| WIRELESS | |
| SSID/ESSID | Modul stealth SSID si controlul accesului bazat pe adresa MAC |
| Wi-Fi users | Pana la 50 de conexiuni simultane |
| Wireless Connectivity Features | Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k) |
| Wireless MAC filter | Allowlist, blocklist |
| Wireless mode | 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA) |
| WiFi security | WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF) |
| Hotspot | Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes |
| ETHERNET | |
| WAN | 1 x port WAN 10/100 Mbps, conformitate cu standardele IEEE 802.3, IEEE 802.3u, 802.3az, suporta auto MDI/MDIX crossover |
| LAN | 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| NETWORK | |
| QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake on Lan (WOL), VXLAN |
| VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules, TTL target customisation |
| DHCP | Alocare IP statica si dinamica, retransmitere DHCP, configurare server DHCP, status, alocari statice: MAC cu caractere wildcard. |
| DDNS | A acceptat peste 25 de furnizori de servicii, altii pot fi configurati manual. |
| Network backup | Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover |
| Load balancing | Distribuie traficul de internet pe multiple conexiuni WAN |

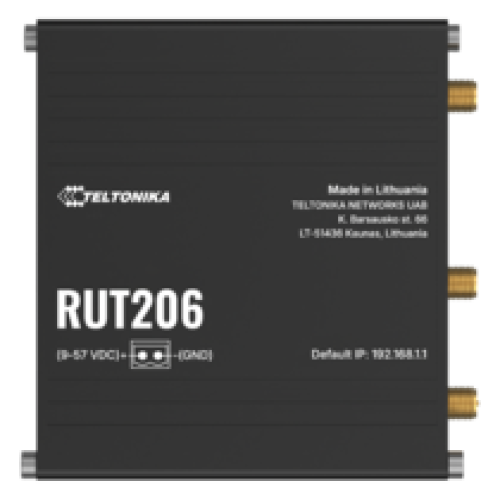

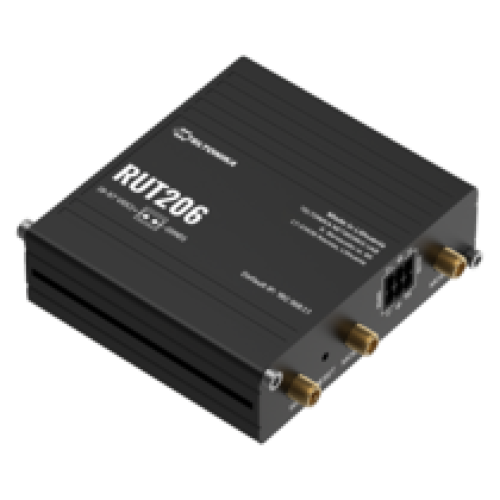

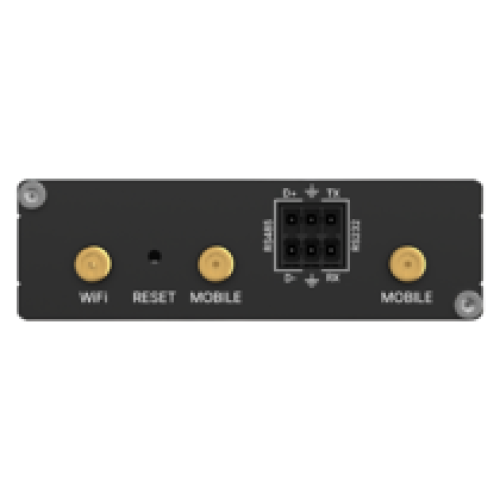

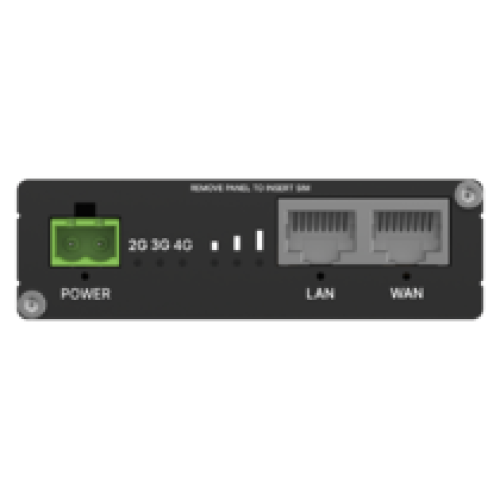

Teltonika RUT206
- Cod produs: RUT206
- Disponibilitate: 10
