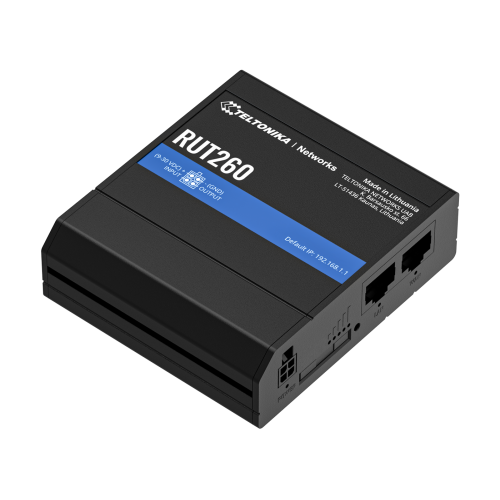

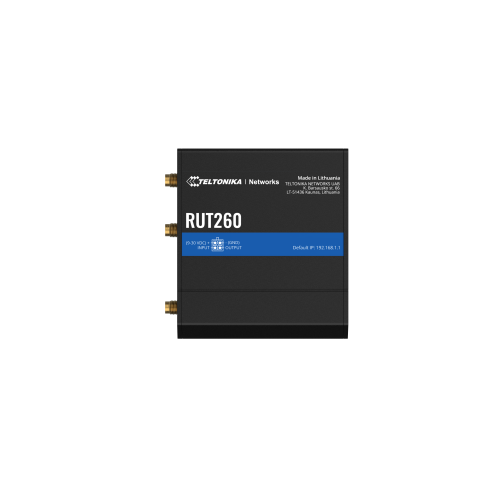

RUT260 este un router celular Teltonika Networks LTE Cat 6 cu failover WAN. Combinatie a caracteristicilor cheie ale RUT240 si RUT360, acest router celular este puternic, usor si suporta o gama larga de protocoale industriale, inclusiv MQTT, SNMP, Modbus si altele.
| DATA TO SERVER | |
| Protocol | HTTP(S), MQTT, Azure MQTT |
| DNP3 | |
| Supported connection | TCP |
| Supported modes | Station, Outstation |
| IOT PLATFORMS | |
| Azure IoT Hub | Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type |
| Cloud of Things | Permite monitorizarea: Device data, Mobile data, Network info, Availability |
| Cumulocity | Permite monitorizarea: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength |
| ThingWorx | Permite monitorizarea: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| MODBUS | |
| Custom registers | Cereri personalizate de blocare a registrului MODBUS TCP, care citesc/scriu intr-un fisier in interiorul routerului si pot fi utilizate pentru extinderea functionalitatii MODBUS TCP Slave. |
| Supported connection types | TCP |
| Supported data formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
| Supported modes | Server, Client |
| MQTT GATEWAY | |
| Modbus MQTT Gateway | Permite trimiterea comenzilor si receptionarea datelor de la MODBUS Master prin intermediul MQTT broker |
| OPC UA | |
| Supported connection types | TCP |
| Supported modes | Client, Server (planned) |
| MOBILE | |
| APN | Auto APN |
| Band management | Band lock, Used band status display |
| Passthrough | Routerul atribuie adresa sa WAN mobila altui dispozitiv de pe LAN. |
| USSD | Sustine trimiterea si citirea mesajelor Unstructured Supplementary Service Data |
| Wireless mesh/roaming | Fast roaming (802.11r) |
| Modul GSM | 4G (LTE) – Cat 6 pana la 300 Mbps, 3G – pana la 42 Mbps |
| Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID |
| Bridge | Direct connection (bridge) intre mobile ISP si device on LAN |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| Black/White list | Operator black/white list |
| Multiple PDN (optional) | Posibilitatea de a utiliza diferite PDN-uri pentru acces si servicii de retea multiple. |
| WIRELESS | |
| SSID/ESSID | ESSID stealth mode |
| Wi-Fi users | Pana la 50 de conexiuni simultane |
| Wireless Hotspot | Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes |
| Wireless mode | IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
| WiFi security | WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
| ETHERNET | |
| WAN | 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| LAN | 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| NETWORK | |
| QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
| VoIP passthrough support | Ajutoare NAT pentru protocoalele H.323 si SIP-alg, permitand rutarea corecta a pachetelor VoIP. |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP si ICMP pentru link inspection |
| Firewall | Port forward, traffic rules, custom rules |
| DHCP | Static si dynamic IP allocation, DHCP Relay |
| DDNS | Suportat de >25 service providers, ceilalti pot fi configurati manual. |
| Network backup | VRRP, Wired options, fiecare dintre acestea poate fi folosita ca automatic Failover, Wi-Fi WAN, Mobile |
| Load balancing | Balance Internet traffic pe multiple conexiuni WAN |
| SSHFS (optional) | Posibilitatea de a monta un sistem de fisiere remote prin protocolul SSH. |
| SECURITATE | |
| Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block |
| Firewall | Regulile preconfigurate ale firewall-ului pot fi activate prin intermediul interfetei WebUI, iar configurarea nelimitata a firewall-ului poate fi realizat? prin intermediul CLI; DMZ; NAT; NAT-T. |
| VLAN | Port si tag-based VLAN separation |
| Mobile quota control | Mobile data limit, customizable period, start time, warning limit, phone number |
| WEB filter | Blacklist pentru blocarea site-urilor nedorite, List? alb? pentru specificarea numai a site-urilor permise. |
| Access control | Control flexibil al accesului pentru pachetele TCP, UDP, ICMP si filtru de adrese MAC. |
| VPN | |
| DMVPN | Metoda de construire a retelelor virtuale private IPsec scalabile |
| SSTP | SSTP client instance support |
| Stunnel | Proxy conceput pentru a adauga functionalitatea de criptare TLS la clientii si serverele existente fara nicio modificare in codul programului. |
| Tinc | Tinc ofera criptare, autentificare si compresie in tunelurile sale. Suport pentru client si server. |
| WireGuard | WireGuard VPN client si server support |
| ZeroTier | ZeroTier VPN client support |
| OpenVPN | Mai multi clienti si un server pot rula simultan, cu 27 de metode de criptare. |
| OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
| IPsec | IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
| GRE | GRE tunnel, GRE tunnel over IPsec support |
| PPTP, L2TP | Instante Client/Server pot functiona simultan, suport pentru L2TPv3, L2TP peste IPsec. |
| CARACTERISTICI | |
| FLASH storage | 16 MB, SPI Flash |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| FIRMWARE / CONFIGURARE | |
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup, restore point |
| FOTA | Update FW |
| RMS | Actualizati firmware-ul/configuratia pentru mai multe dispozitive odata. |
| Keep settings | Actualizare firmware fara a pierde configurarea curenta. |
| FIRMWARE CUSTOMIZATION | |
| Operating system | RutOS (OpenWrt bazat pe Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++, si Python, Java in Package manager |
| Development tools | SDK package cu build environment provided |
| INTRARI/IESIRI | |
| I/O juggler | Permite stabilirea anumitor conditii I/O pentru a initia un eveniment. |
| Input | 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high |
| Output | 1 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Events | Email, RMS, SMS |
| ALIMENTARE | |
| Connector | 4-pin industrial DC power socket |
| Input voltage range | 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (passive) | Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 30 VDC |
| Power consumption | Idle: < 2 W, Max: < 6.5 W |

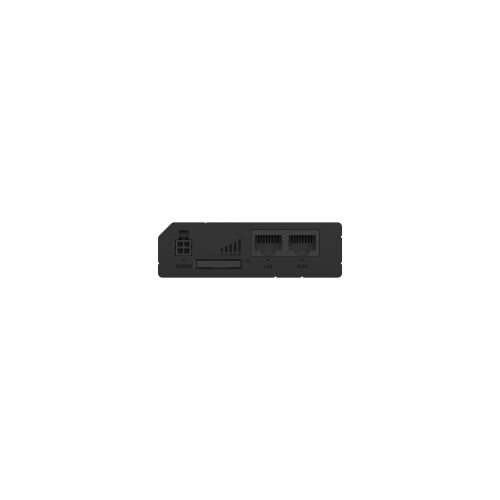

| PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |

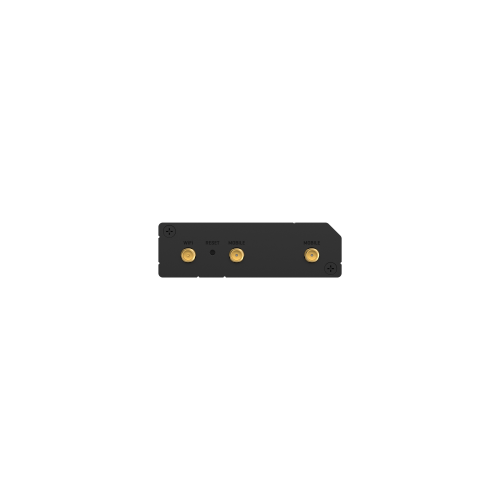

| Antennas | 2 x SMA pentru LTE, 1 x RP-SMA pentru Wi-Fi |
| I/O’s | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
| Ethernet | 2 x RJ45 ports, 10/100 Mbps |
| Status LEDs | 2 x Connection type status, 5 x Mobile connection strength, 1 x LAN status, 1 x WAN status, 1 x Power |
| SIM | 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder, eSIM (Optional) |
| Power | 1 x 4-pin power connector |
| Reset | Reboot/User default reset/Factory reset button |
| PHYSICAL SPECIFICATION | |
| Dimensions (W x H x D) | 83 x 25 x 74 mm |
| Casing material | Carcasa de aluminiu, panouri din plastic |
| Weight | 130 g |
| Mounting options | DIN rail, flat surface placement |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C pana la 75 °C |
| Operating humidity | 10% pana la 90% non-condensing |
| Ingress Protection Rating | IP30 |
| REGULATORY & TYPE APPROVALS | |
| Regulatory | CE/RED, UKCA, UCRF, RCM, EAC, WEEE |
