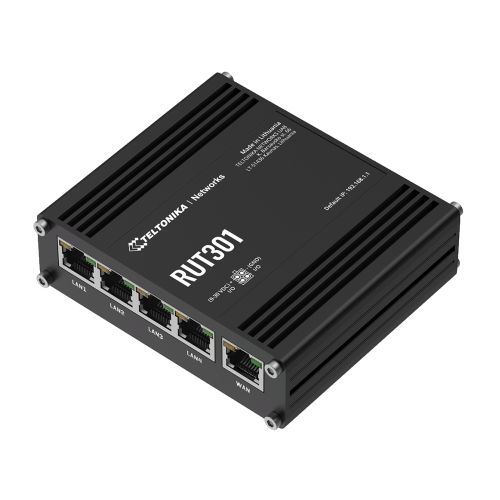

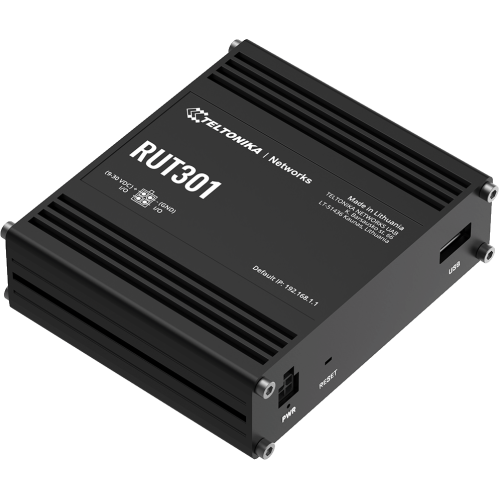

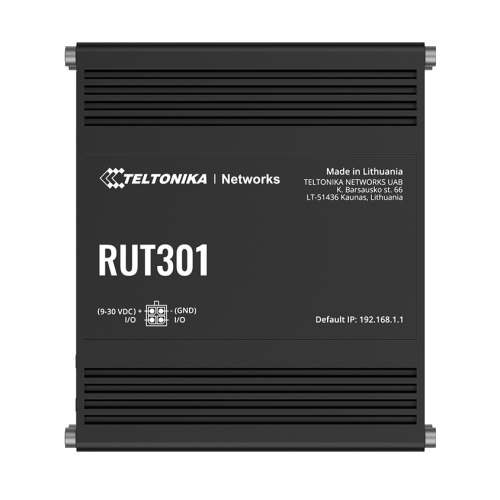

RUT301 este unul dintre cele mai rentabile routere Ethernet industriale de pe piata IoT, oferind conectivitate robusta la retea cu caracteristici avansate de securitate. Acest router Ethernet vine cu cinci porturi Ethernet, doua I/O digitale configurabile si un port USB 2.0 pentru conformitate usoara cu echipamentele industriale, de intreprindere sau de retail. In plus, RUT301 are un firewall preconfigurat si suporta multiple protocoale de comunicatie industriala.
| IOT PLATFORMS | |
| Cloud of Things | RMS, FOTA |
| MECHANICAL/ENVIRONMENTAL | |
| Housing dimensions | Carcasa din aluminiu cu optiune de montare pe sina DIN si capacitate de impamantare |
| Memory | |
| Memorie | 128 MB, DDR2 |
| TRM SOFTWARE | |
| Management Software | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| NETWORK | |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet |
| Firewall | Port forward, Traffic rules, Custom rules, Pre-configured firewall rules, DMZ, NAT, NAT-T, NAT helpers, Unlimited firewall configuration via CLI |
| CARACTERISTICI | |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| FIRMWARE CUSTOMIZATION | |
| Operating system | RutOS (OpenWrt bazat pe Linux OS) |
| USB | |
| Storage formats | 16 MB serial NOR flash |
| PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |
| Other | 1 x USB Host |

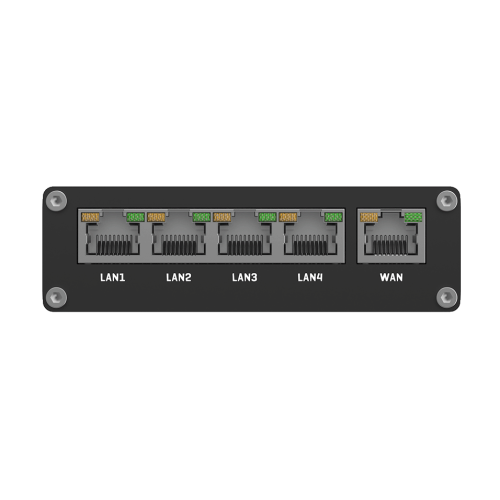

| Ethernet | 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX |
| Status LEDs | 5 x Ethernet, 1 x Power |

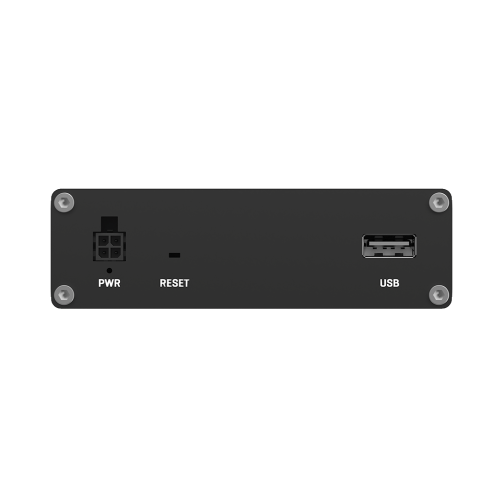

| Power | 4-pin industrial DC power socket |
| Input/output | 2 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high |
| PHYSICAL SPECIFICATION | |
| Dimensions | 100 x 30 x 85 mm |
| Weight | 233 g |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C la 75 °C |
