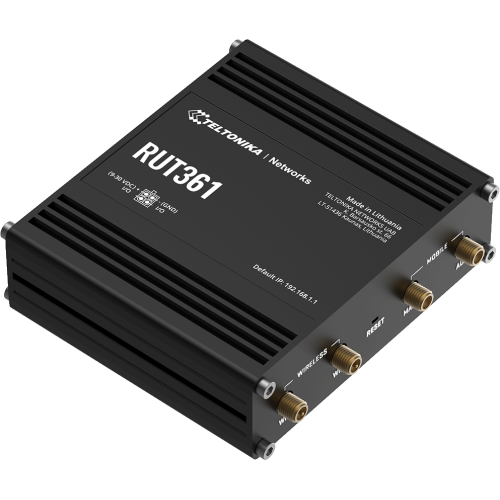

Routerul RUT361 este un router celular robust cu viteze de pana la 300 Mbps cu agregare de operatori, esential pentru solutiile IoT care necesita retele neintrerupte in medii dificile. Monitorizarea la distanta, functiile avansate de securitate si failover-ul WAN fac din acest router LTE Cat 6 unul bogat in functionalitati, iar cele doua antene Wi-Fi asigura o aplicabilitate mai mare a dispozitivelor in diverse aplicatii M2M.
| MECHANICAL/ENVIRONMENTAL | |
| Housing dimensions | Caracasa din aluminiu |
| Memory | |
| Memorie | 128 MB, DDR2 RAM |
| TRM SOFTWARE | |
| Management Software | WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS |
| MOBILE | |
| Modul GSM | 4G (LTE) – Cat 6 pana la 300 Mbps, 3G – pana la 42 Mbps |
| Multiple PDN (optional) | Posibilitatea de a folosi diferite PDN-uri pentru acces si servicii multiple de retea |
| NETWORK | |
| Network protocols | NAT, Static/Dynamic routing, Firewall, OpenVPN, IPsec, H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection monitoring | Ping Reboot, Periodic Reboot, Wget Reboot, LCP and ICMP for link inspection |
| SECURITATE | |
| Authetication | Pre-shared key, digital certificates, X.509 certificates |
| CARACTERISTICI | |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| FIRMWARE / CONFIGURARE | |
| Keep settings | Actualiza?i firmware-ul fara a pierde configuratia curenta |
| FIRMWARE CUSTOMIZATION | |
| Operating system | RutOS (OpenWrt bazat pe Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++ |
| Development tools | Pachet SDK cu mediu de dezvoltare furnizat |
| USB | |
| Storage formats | 16 MB |
| PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |

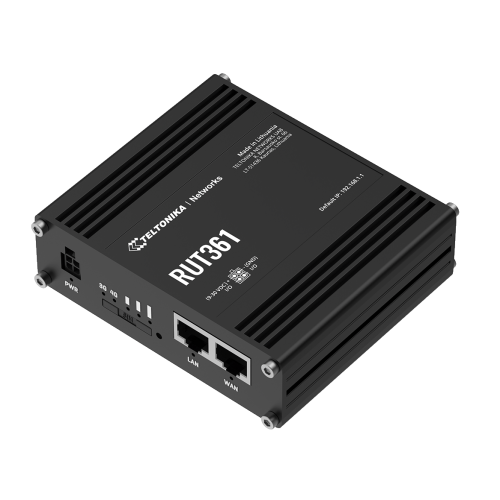

| Ethernet | 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX |
| Status LEDs | 2 x Mobile connection type, 3 x Mobile connection strength, 2 x Eth status, 1 x Power |
| SIM | 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder |
| Power | 1 x 4-pin power connector |
| Input/output | 2 x Digital Input, 2 x Digital Output on 4-pin power connector |
| PHYSICAL SPECIFICATION | |
| Dimensions | 100 x 30 x 85 mm |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C la 75 °C |
Etichete: Router Teltonika RUT361
