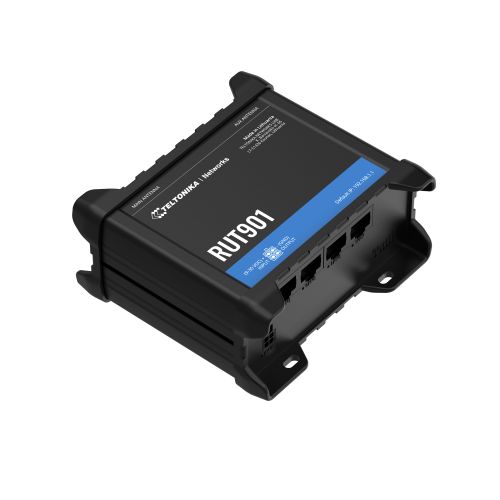

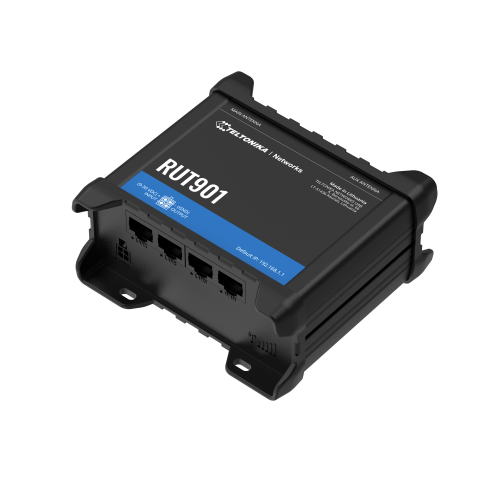

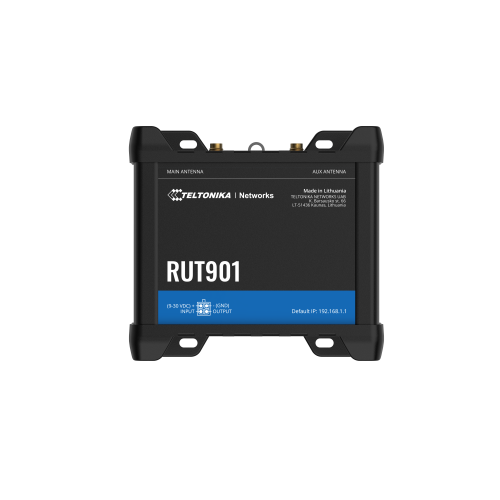

Routerul celular RUT901 aduce pe piata caracteristicile de top ale predecesorilor sai, RUT950 si RUT951. Dispozitivul asigura performanta ridicata, oferind failover WAN automat catre o conexiune de backup disponibila, garantand continuitatea retelei si eliminand timpul de nefunctionare.
| DATA TO SERVER | |
| Protocol | HTTP(S), MQTT, Azure MQTT, Kinesis |
| DNP3 | |
| Supported modes | TCP Master, DNP3 Outstation |
| EMC EMISSIONS & IMMUNITY | |
| CS | EN 61000-4-6:2014 |
| DIP | EN IEC 61000-4-11:2020 |
| EFT | EN 61000-4-4:2012 |
| ESD | EN 61000-4-2:2009 |
| RS | EN 61000-4-2:2009 |
| Standards | EN 301 489-1 V2.2.3, Draft EN 301 489-17 V3.2.4, EN 301 489-52 V1.2.1, EN 55032:2015+A11:2020+A1:2020, EN 55035:2017+A11:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013 + A1:2019+A2:2021; |
| Surge protection | EN 61000-4-5:2014+A1:2017 |
| IOT PLATFORMS | |
| Azure IoT Hub | Poate trimite adresa IP a dispozitivului, numarul de octeti trimisi/primiti, temperatura si numarul de PIN-uri catre serverul Azure IoT Hub. |
| Cloud of Things | Permite monitorizarea: Device data, Mobile data, Network info, Availability |
| Cumulocity | Permite monitorizarea: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength |
| ThingWorx | Permite monitorizarea: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| MODBUS TCP MASTER | |
| Supported data formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC) |
| Supported functions | 01, 02, 03, 04, 05, 06, 15, 16 |
| MODBUS TCP SLAVE | |
| Allow Remote Access | Permite accesul prin WAN. |
| Custom registers | Solicitarile personalizate ale blocului de registre MODBUS TCP, care citesc/scriu într-un fi?ier din interiorul routerului si pot fi folosite pentru a extinde functionalitatea MODBUS TCP Slave. |
| ID range | R?spunde la un ID in intervalul [1;255] sau oricare. |
| MQTT GATEWAY | |
| MQTT Gateway | Permite trimiterea comenzilor si receptionarea datelor de la MODBUS Master prin intermediul brokerului MQTT. |
| SAFETY | |
| Standards | EN IEC 62311:2020; IEC 62368-1:2018 EN IEC 62368-1:2020+A11:2020; EN 50665:2017 |
| MOBILE | |
| 3GPP Release | Release 9 |
| APN | Auto APN |
| Band management | Band lock, Used band status display |
| Passthrough | Routerul atribuie adresa sa WAN mobila altui dispozitiv de pe LAN. |
| USSD | Suporta trimiterea si citirea mesajelor Unstructured Supplementary Service Data |
| Modul GSM | 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
| SIM switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
| Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID |
| Bridge | Direct connection (bridge) intre mobile ISP si device on LAN |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| Black/White list | Operator black/white list |
| Multiple PDN (optional) | Possibility to use different PDNs for multiple network access and services |
| WIRELESS | |
| SSID/ESSID | SSID stealth mode si access control based on MAC address |
| Wi-Fi users | Pân? la 100 de conexiuni simultane. |
| Wireless Connectivity Features | Fast roaming (802.11r), Relayd |
| Wireless Hotspot | Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes |
| ETHERNET | |
| WAN | 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| LAN | 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| NETWORK | |
| QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
| VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Regulile firewall preconfigurate pot fi activate prin intermediul WebUI, configurarea firewall-ului nelimitata prin CLI; DMZ; NAT; NAT-T. |
| DHCP | Static and dynamic IP allocation, DHCP Relay |
| DDNS | Suporta >25 service providers, altii pot fi configurati manual |
| Network backup | Wi-Fi WAN, Mobile, VRRP, Wired options, fiecare poate fi utilizat ca automatic Failover |
| Load balancing | Balance Internet traffic over multiple WAN connections |
| SSHFS (optional) | Posibilitatea de a monta un sistem de fisiere la distanta prin protocolul SSH (nu este disponibil in FW standard). |
| SECURITATE | |
| Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block |
| VLAN | Port si tag-based VLAN separation |
| Mobile quota control | Mobile data limit, customizable period, start time, warning limit, phone number |
| WEB filter | Blacklist pentru blocarea site-urilor nedorite, Whitelist pentru specificarea doar a site-urilor permise. |
| Access control | Control flexibil al accesului la pachete TCP, UDP, ICMP ?i filtru de adrese MAC. |
| VPN | |
| DMVPN | Metoda de construire a retelelor VPN IPsec scalabile. |
| SSTP | SSTP client instance support |
| Stunnel | Proxy conceput pentru adaugarea functionalitatii de criptare TLS la clientii si serverele existente fara niciun fel de modificare in codul programului. |
| Tinc | Tinc ofera criptare, autentificare si compresie in tunelurile sale. Suport pentru client si server. |
| WireGuard | WireGuard VPN client si server support |
| ZeroTier | ZeroTier VPN client support |
| OpenVPN | Mai multi clienti si un server pot rula simultan, 27 metode de criptare. |
| OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
| IPsec | IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
| PPTP, L2TP | Client/Server instances pot rula simultan, L2TPv3, L2TP over IPsec support |
| CARACTERISTICI | |
| FLASH storage | 16 MB, SPI Flash |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| MONITORIZARE & ADMINISTRARE | |
| Call | Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off |
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH (v1, v2) |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap |
| JSON-RPC | Management API over HTTP/HTTPS |
| MODBUS | MODBUS TCP status/control |
| RMS | Teltonika Remote Management System (RMS) |
| FIRMWARE / CONFIGURARE | |
| WEB UI | Actualizeaza FW din fisier, verifica FW pe server, profiluri de configurare, backup de configurare. |
| FOTA | Update FW |
| RMS | Actualizeaza firmware-ul/configuratia pentru mai multe dispozitive simultan. |
| Keep settings | Actualizeaza FW fara a pierde configuratia curenta |
| FIRMWARE CUSTOMIZATION | |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++, and Python, Java in Package manager |
| Development tools | SDK package with build environment provided |
| INTRARI/IESIRI | |
| I/O juggler | Permite setarea anumitor conditii I/O pentru a initia un eveniment. |
| Input | 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high |
| Output | 1 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Events | Email, RMS, SMS |
| ALIMENTARE | |
| Connector | 4-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max |
| PoE (passive) | Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 30 VDC |
| Power consumption | < 2 W idle, < 7 W Max |
| PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |
| Antennas | 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi antenna connectors |
| I/O’s | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |

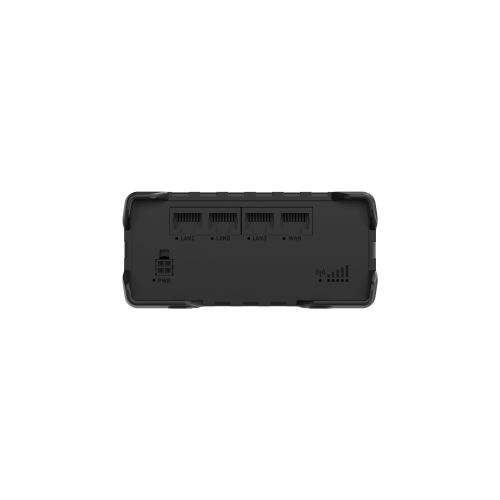

| Ethernet | 4 x RJ45 ports, 10/100 Mbps |
| Status LEDs | 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional) |
| Power | 1 x 4-pin power connector |
| Reset | Reboot/User default reset/Factory reset button |
| PHYSICAL SPECIFICATION | |
| Dimensions (W x H x D) | 110 x 50 x 100 mm |
| Casing material | Carcasa de aluminiu, panouri din plastic |
| Weight | 297 g |
| Mounting options | DIN rail (poate fi montat pe doua fete), asezare pe suprafata plana |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C pana la 75 °C |
| Operating humidity | De la 10% la 90%, fara condensare. |
| Ingress Protection Rating | IP30 |
| REGULATORY & TYPE APPROVALS | |
| Regulatory | CE/RED, UKCA, EAC, UCRF, CB |
| RF | |
| Standards | EN 300 328 V2.2.2, EN 301 511 V12.5.1, EN 301 908-1 V15.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1 |
