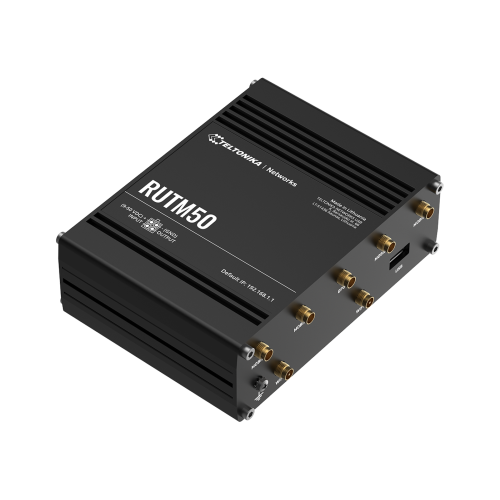

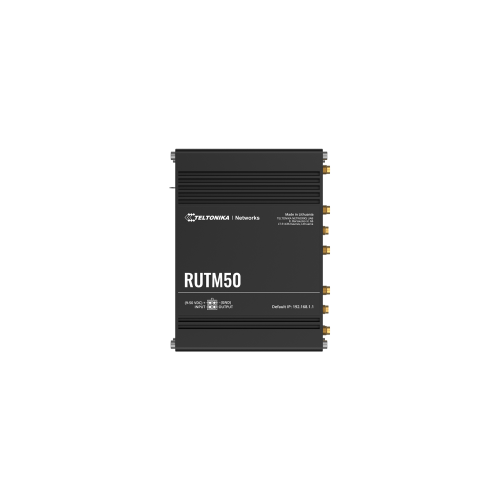

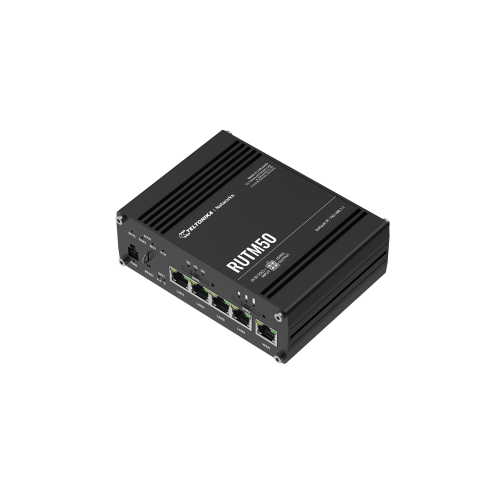

RUTM50 este un router 5G celular de la Teltonika Networks, certificat de FCC pentru America de Nord, cu viteze celulare ultra-rapide de pana la 3,4 Gbps. Acest router dual SIM are functii de auto-failover si backup WAN si suporta atat arhitecturile 5G SA, cat si NSA. De asemenea, este compatibil cu tehnologia 4G (LTE Cat 19/18), fiind ideal pentru a pregati solutiile tale de retea industriala pentru viitor.
| BACNET | |
| Supported connection types | TCP |
| DATA TO SERVER | |
| Protocol | HTTP(S), MQTT, Azure MQTT |
| DNP3 | |
| Supported connection | TCP, USB |
| Supported modes | Station, Outstation |
| EMC EMISSIONS & IMMUNITY | |
| Standards | 47 CFR Part 15 Subpart B ICES-003: Issue 7 (October 2020) |
| IOT PLATFORMS | |
| Azure IoT Hub | Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC, IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server |
| Cloud of Things | Permite monitorizarea: Device data, Mobile data, Network info, Availability |
| Cumulocity | Permite monitorizarea: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP |
| ThingWorx | Permite monitorizarea: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| MODBUS | |
| Custom registers | Cereri de blocare personalizate MODBUS TCP, care citesc/scriu într-un fisier din interiorul routerului si pot fi utilizate pentru a extinde functionalitatea MODBUS TCP Slave. |
| Supported connection types | TCP, USB |
| Supported data formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
| Supported modes | Server, Client |
| MQTT GATEWAY | |
| Modbus MQTT Gateway | Permite trimiterea comenzilor si primirea datelor de la MODBUS Master prin intermediul brokerului MQTT. |
| OPC UA | |
| Supported connection types | TCP |
| Supported modes | Client, Server (planned) |
| MOBILE | |
| APN | Auto APN |
| Band management | Band lock, Used band status display |
| Passthrough | Routerul atribuie adresa sa WAN mobila altui dispozitiv de pe LAN. |
| USSD | Sustine trimiterea si citirea mesajelor de Date Suplimentare de Serviciu Nestructurate (USSD). |
| Modul GSM | 5G Sub-6 GHz SA, NSA 2.4, 3.4Gbps DL (4x4 MIMO) 900, 550Mbps UL (2x2 MIMO); 4G (LTE): DL Cat 19 1.6Gbps (4x4 MIMO), UL Cat 18 200Mbps |
| SIM switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
| Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID |
| Bridge | Direct connection (bridge) intre mobile ISP si device on LAN |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| Black/White list | Operator black/white list |
| Multiple PDN (optional) | Posibilitatea de a utiliza diferite PDN-uri pentru accesul la retea si servicii multiple. |
| WIRELESS | |
| SSID/ESSID | ESSID stealth mode |
| Wi-Fi users | pana la 150 de conexiuni simultane |
| Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), Relayd |
| Wireless Hotspot | Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes |
| Wireless MAC filter | Whitelist, blacklist |
| Wireless mode | 802.11b, g, n, ac Wave 2 (WiFi 5) cu data transmission rates pana la 867 Mbps (Dual Band, MU-MIMO) |
| WiFi security | WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
| ETHERNET | |
| WAN | 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| LAN | 4 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| NETWORK | |
| QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
| VoIP passthrough support | Asistenta pentru protocoalelor H.323 si SIP-alg NAT, permit rutarea corecta a pachetelor VoIP. |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| DHCP | Static si dynamic IP allocation, DHCP Relay |
| DDNS | Accepta >25 de furnizori de servicii, altii pot fi configurati manual. |
| Network backup | Wi-Fi WAN, Mobile, VRRP, Wired options, fiecare putand fi folosit ca automatic Failover |
| Load balancing | Balance Internet traffic over multiple WAN connections |
| SSHFS (optional) | Posibilitatea de a monta un sistem de fi?iere remote prin protocolul SSH. |
| SECURITATE | |
| Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block |
| Firewall | Reguli preconfigurate ale firewall-ului pot fi activate prin intermediul interfetei WebUI, configurarea nelimitata a firewall-ului prin intermediul CLI; DMZ; NAT; NAT-T. |
| VLAN | Port si tag-based VLAN separation |
| Mobile quota control | Mobile data limit, customizable period, start time, warning limit, phone number |
| WEB filter | Blacklist pentru blocarea site-urilor nedorite, Whitelist pentru specificarea doar a site-urilor permise. |
| Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
| VPN | |
| DMVPN | Method of building scalable IPsec VPNs |
| SSTP | SSTP client instance support |
| Stunnel | Proxy proiectat pentru a ad?uga func?ionalitatea de criptare TLS la clien?ii ?i serverele existente f?r? nicio schimbare în codul programului. |
| Tinc | Tinc ofera criptare, autentificare si compresie în tunelurile sale. Suport pentru client si server. |
| WireGuard | WireGuard VPN client si server support |
| ZeroTier | ZeroTier VPN client support |
| OpenVPN | Mai multi clienti si un server pot rula simultan, cu 27 de metode de criptare. |
| OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
| IPsec | IKEv1, IKEv2, cu 14 encryption methods pentru IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
| GRE | GRE tunnel, GRE tunnel over IPsec support |
| PPTP, L2TP | Instantele Client/Server pot functiona simultan, L2TPv3, L2TP peste suport IPsec . |
| CARACTERISTICI | |
| FLASH storage | 16MB serial NOR flash, 256MB serial NAND flash |
| CPU | MediaTek MT7621A, Dual-Core, 880 MHz, MIPS1004Kc |
| RAM | 256 MB, DDR3 |
| MONITORIZARE & ADMINISTRARE | |
| Call | Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off |
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
| FOTA | Actualizare firmware de la server, notificare automata |
| SSH | SSH (v1, v2) |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap |
| JSON-RPC | Management API over HTTP/HTTPS |
| MODBUS | MODBUS TCP status/control |
| RMS | Teltonika Remote Management System (RMS) |
| FIRMWARE / CONFIGURARE | |
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW |
| RMS | Actualizare firmware/configuratie pentru mai multe dispozitive simultan. |
| Keep settings | Actualizare firmware fara a pierde configurarea curenta |
| FIRMWARE CUSTOMIZATION | |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++ |
| Development tools | Pachetul SDK cu mediul de constructie furnizat |
| LOCATION TRACKING | |
| Geofencing | Configurable multiple geofence zones |
| GNSS | GPS, GLONASS, BeiDou, Galileo si QZSS |
| Coordinates | GNSS coordinates via WebUI, SMS, TAVL, RMS |
| NMEA | NMEA 0183 |
| NTRIP | NTRIP protocol (Networked Transport of RTCM via Internet Protocol) |
| Server software | Supported server software TAVL, RMS |
| INTRARI/IESIRI | |
| I/O juggler | Permite sa se configureze anumite conditii I/O pentru a initia un eveniment. |
| Input | 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high |
| Output | 1 x Digital Output, Open collector output, max output 50 V, 300 mA |
| Events | Email, RMS, SMS |
| USB | |
| Storage formats | FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 |
| Data rate | USB 2.0 |
| Applications | Samba share, USB-to-serial |
| External devices | Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter |
| ALIMENTARE | |
| Input voltage range | 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max |
| PoE (passive) | Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC |
| PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |

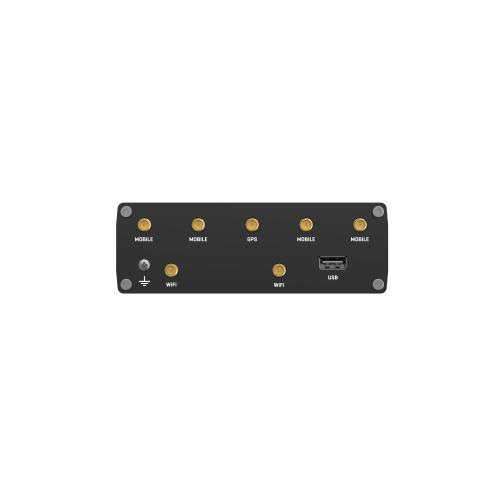

| Antennas | 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS |
| I/O’s | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
| Other | 1 x Grounding screw |

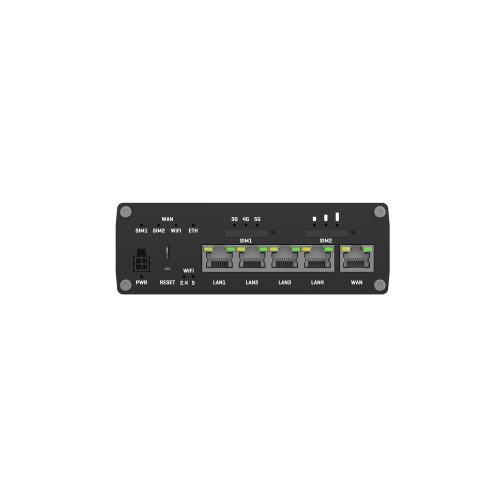

| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs |
| SIM | 2 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V |
| Power | 1 x 4-pin power connector |
| USB | 1 x USB A port for external devices |
| Reset | Reboot/User default reset/Factory reset button |
| PHYSICAL SPECIFICATION | |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Casing material | Carcasa din aluminiu |
| Weight | 519 g |
| Mounting options | DIN rail (poate fi montat pe doua parti), plasare pe suprafata plana |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C pana la 75 °C |
| Operating humidity | 10% pana la 90% fara condensare |
| Ingress Protection Rating | IP30 |
| REGULATORY & TYPE APPROVALS | |
| Regulatory | FCC, IC, PTCRB |
| RF | |
| Standards | 47 CFR Part 15 Subpart C - § 15.247, Subpart E - § 15.407 RSS-247 Issue 2 (February 2017), RSS-Gen Issue 5 (April 2018) Amendment 2 (February 2021) KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 KDB 905462 D04 Operational Modes for DFS Testing New Rules v01 |
TELTONIKA RUTM50
- Cod produs: RUTM50
- Disponibilitate: 1
Etichete: RUTM50
