Acest router industrial robust are patru porturi Gigabit Ethernet, un CPU Quad-Core si 256 MB RAM. Aceste specificatii puternice, combinate cu functionalitatile de baza ale software-ului RutOS, cum ar fi serviciile multiple VPN, firewall-ul avansat si suportul pentru RMS, fac din acest dispozitiv un performant industrial remarcabil.
| DATA TO SERVER | |
| Protocol | HTTP(S), MQTT, Azure MQTT, Kinesis |
| DNP3 | |
| Supported modes | TCP Master, DNP3 Outstation |
| EMC EMISSIONS & IMMUNITY | |
| CS | EN 61000-4-6:2014 |
| DIP | EN 61000-4-11:2004 |
| EFT | EN 61000-4-4:2012 |
| ESD | EN 61000-4-2:2009 |
| RS | EN 61000-4-3:2006 + A1:2008 + A2:2010 |
| Standards | EN 55032:2015, EN 55035:2017 |
| Surge protection | EN 61000-4-5:2014 |
| IOT PLATFORMS | |
| Azure IoT Hub | Poate trimite IP-ul dispozitivului, numarul de octeti trimisi/primiti, temperatura si numarul PIN catre serverul Azure IoT Hub. |
| Cloud of Things | Permite monitorizarea: Device data, Mobile data, Network info, Availability |
| Cumulocity | Permite monitorizarea: Device Model, Revision and Serial Number, WAN Type and IP |
| ThingWorx | Permite monitorizarea: WAN Type, WAN IP |
| MODBUS TCP MASTER | |
| Supported data formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC) |
| Supported functions | 01, 02, 03, 04, 05, 06, 15, 16 |
| MODBUS TCP SLAVE | |
| Allow Remote Access | Permite acces prin WAN |
| Custom registers | Cereri de blocare a registrului personalizat MODBUS TCP, care citesc/scriu intr-un fisier in interiorul routerului si pot fi utilizate pentru extinderea functionalitatii MODBUS TCP Slave. |
| ID range | Raspunde unui ID în intervalul [1;255] sau oricare dintre acestea. |
| MQTT GATEWAY | |
| MQTT Gateway | Permite trimiterea comenzilor si receptionarea datelor de la MODBUS Master prin intermediul brokerului MQTT |
| SAFETY | |
| Standards | IEC 62368-1:2014 EN 62368-1:2014+A11:2017 |
| ETHERNET | |
| WAN | 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| LAN | 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| NETWORK | |
| QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules |
| DHCP | Static and dynamic IP allocation, DHCP Relay |
| DDNS | Suportat de peste 25 de furnizori de servicii, ceilalti pot fi configurati manual. |
| Network backup | VRRP, Wired options, fiecare dintre ele poate fi utilizata ca automatic Failover |
| Load balancing | Echilibrarea traficului pe internet peste mai multe conexiuni WAN |
| SSHFS (optional) | Posibilitatea de a monta un sistem de fisiere remote prin protocolul SSH. |
| SECURITATE | |
| Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block |
| Firewall | Regulile preconfigurate ale firewall-ului pot fi activate prin intermediul interfetei WebUI, iar configurarea nelimitata a firewall-ului este posibila prin intermediul CLI; DMZ; NAT; NAT-T |
| VLAN | Port si tag-based VLAN separation |
| WEB filter | Blaclist pentru blocarea site-urilor nedorite, Whitelist pentru specificarea doar a site-urilor permise. |
| Access control | Control flexibil al accesului pentru pachetele TCP, UDP, ICMP, filtru pentru adresele MAC. |
| VPN | |
| DMVPN | Metoda de construire a VPN IPsec scalabile |
| SSTP | SSTP client instance support |
| Stunnel | Proxy proiectat pentru adaugarea functionalitatii de criptare TLS la clientii si serverele existente fara nicio modificare în codul programului. |
| Tinc | Tinc ofera criptare, autentificare si compresie in tunelurile sale. Suport pentru client si server. |
| WireGuard | WireGuard VPN client si server support |
| ZeroTier | ZeroTier VPN client support |
| OpenVPN | Mai multi clienti si un server pot functiona simultan, cu 27 de metode de criptare. |
| OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
| IPsec | IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
| GRE | GRE tunnel, GRE tunnel over IPsec support |
| PPTP, L2TP | Instante Client/server pot rula simultan, suport pentru L2TPv3, L2TP peste IPsec |
| CARACTERISTICI | |
| FLASH storage | 256 MB, SPI Flash |
| CPU | Quad-core ARM Cortex A7, 717 MHz |
| RAM | 256 MB, DDR3 |
| MONITORIZARE & ADMINISTRARE | |
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
| FOTA | Actualizare firmware de la server, notificare automata |
| SSH | SSH (v1, v2) |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| JSON-RPC | Management API over HTTP/HTTPS |
| MODBUS | MODBUS TCP status/control |
| RMS | Teltonika Remote Management System (RMS) |
| FIRMWARE / CONFIGURARE | |
| WEB UI | Actualizare firmware din fisier, verificare firmware pe server, profiluri de configurare, backup de configurare |
| FOTA | Update FW |
| RMS | Actualizare firmware/configuratie pentru mai multe dispozitive odata |
| Keep settings | Actualiza?i firmware-ul fara a pierde configuratia curenta |
| FIRMWARE CUSTOMIZATION | |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++, and Python, Java in Package manager |
| Development tools | Pachetul SDK cu mediul de construire inclus |
| INTRARI/IESIRI | |
| I/O juggler | Permite setarea anumitor conditii I/O pentru a initia un eveniment. |
| Input | 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high |
| Output | 1 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Events | Email, RMS |
| USB | |
| Storage formats | FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 |
| Data rate | USB 2.0 |
| Applications | Samba share, USB-to-serial |
| External devices | Posibilitatea de a conecta external HDD, flash drive, additional modem, printer, USB-serial adapter |
| ALIMENTARE | |
| Connector | 4-pin industrial DC power socket |
| Input voltage range | 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (passive) | Posibilitatea de a fi alimentat prin portul LAN1, necompatibil cu standardele IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC |
| Power consumption | 6 W Max |
| PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |
| I/O’s | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |

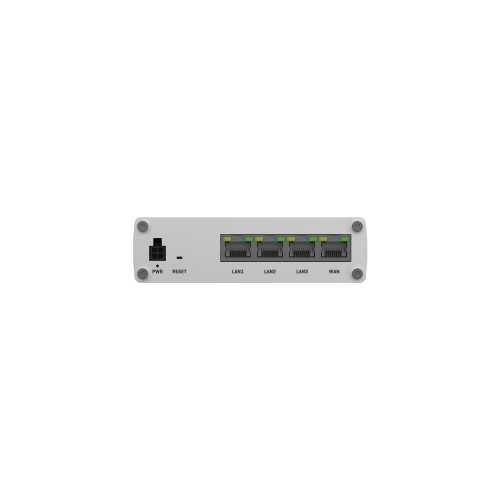

| Ethernet | 4 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 8 x LAN status LEDs, 1 x Power LED |
| Power | 1 x 4-pin power connector |

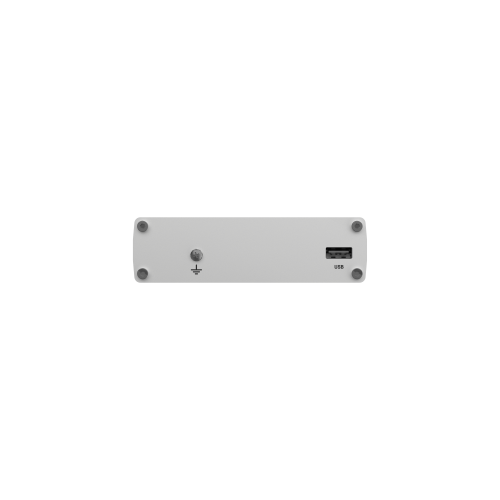

| USB | 1 x USB A port for external devices |
| Reset | Reboot/User default reset/Factory reset button |
| PHYSICAL SPECIFICATION | |
| Dimensions (W x H x D) | 115 x 32.2 x 95.2 mm |
| Casing material | Carcasa din aluminiu |
| Weight | 345 g |
| Mounting options | sina DIN, montare pe suprafata plata |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C la 75 °C |
| Operating humidity | 10% la 90% fara condensare |
| Ingress Protection Rating | IP30 |
| REGULATORY & TYPE APPROVALS | |
| Regulatory | CE, RoHS, REACH |

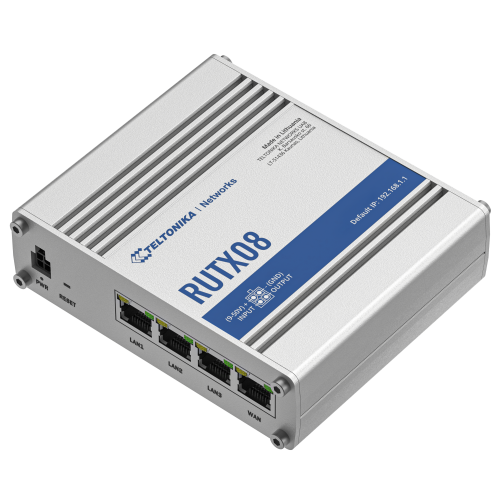

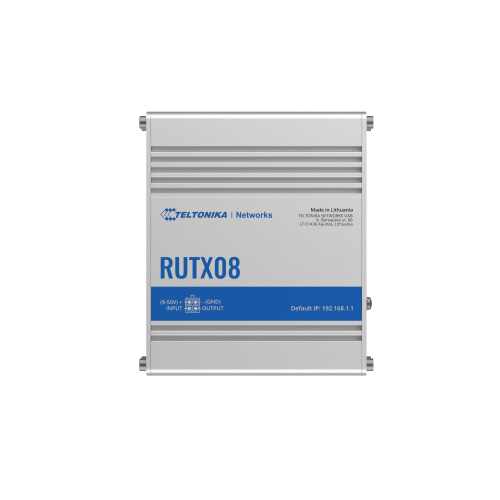

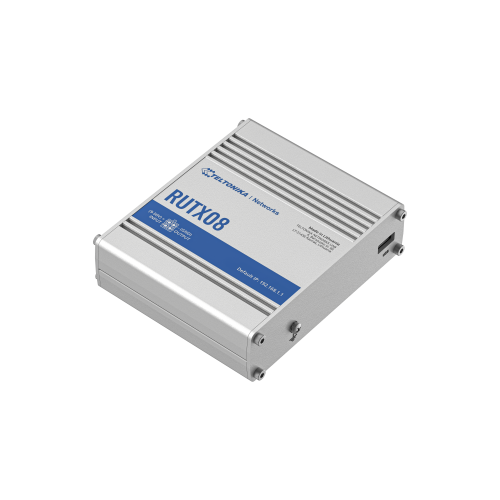

Teltonika RUTX08
