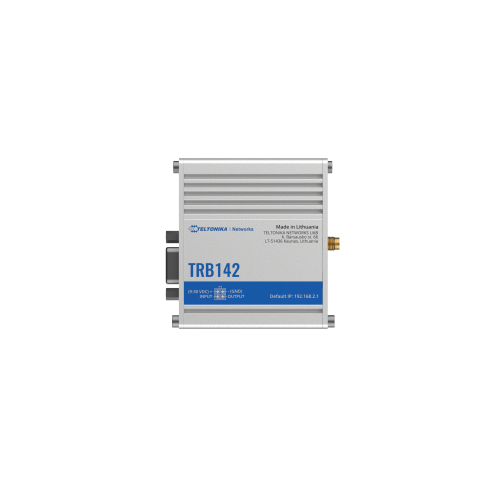

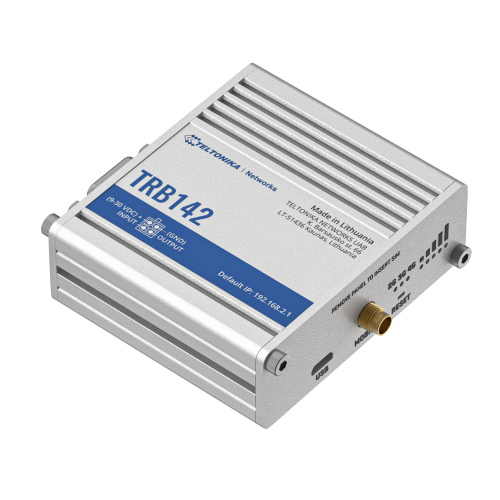

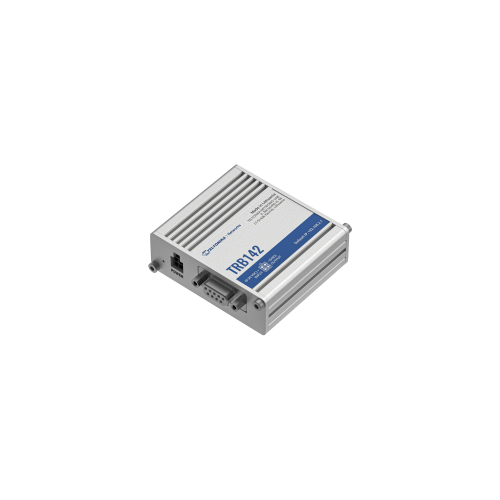

TRB142 este un gateway IoT ultra-mic, usor si energetic, echipat cu conectivitate LTE de importanta critica. TRB142 vine cu o interfata RS232 larg utilizata pentru gestionarea la distanta a dispozitivelor industriale.
| DATA TO SERVER | |
| Protocol | HTTP(S), MQTT, Azure MQTT, Kinesis |
| EMC EMISSIONS & IMMUNITY | |
| CS | EN 61000-4-6:2014 |
| DIP | EN 61000-4-11:2004 |
| EFT | EN 61000-4-4:2012 |
| ESD | EN 61000-4-2:2009 |
| RS | EN 61000-4-3:2006 + A1:2008 + A2:2010 |
| Standards | EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-1 V11.1.2, EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2 |
| IOT PLATFORMS | |
| Azure IoT Hub | Poate trimite IP-ul dispozitivului, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type |
| Cloud of Things | Permite monitorizarea: Device data, Mobile data, Network info, Availability |
| Cumulocity | Permite monitorizarea: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength |
| ThingWorx | Permite monitorizarea: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| MODBUS TCP MASTER | |
| Supported data formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC) |
| Supported functions | 01, 02, 03, 04, 05, 06, 15, 16 |
| MODBUS TCP SLAVE | |
| Allow Remote Access | Permite acces prin WAN |
| Custom registers | Solicitari de bloc personalizate MODBUS TCP, care citesc/scriu intr-un fisier in interiorul routerului si pot fi utilizate pentru extinderea functionalitatii MODBUS TCP Slave. |
| ID range | R?spunde la un ID în intervalul [1;255] sau la oricare dintre acestea. |
| MQTT GATEWAY | |
| MQTT Gateway | Permite trimiterea comenzilor si receptionarea datelor de la MODBUS Master prin intermediul brokerului MQTT. |
| SAFETY | |
| Standards | Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 |
| MOBILE | |
| APN | Auto APN |
| Passthrough | Routerul atribuie adresa sa WAN mobila altui dispozitiv de pe LAN. |
| USSD | Suporta trimiterea si citirea mesajelor Unstructured Supplementary Service Data |
| Modul GSM | 4G (LTE) – Cat 4 pana la 150 Mbps, 3G – pana la 42 Mbps, 2G – pana la 236.8 kbps |
| Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID |
| Bridge | Direct connection (bridge) intre mobile ISP si device on LAN |
| Black/White list | Operator black/white list |
| NETWORK | |
| QoS / Smart Queue Management (SQM) | Prioritizarea cozi pentru trafic in functie de sursa/destinatie, serviciu, protocol sau port, WMM, 802.11e. |
| Routing | Static routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT |
| VoIP passthrough support | Ajutoare NAT pentru protocoalele H.323 si SIP-alg, permitand rutarea corecta a pachetelor VoIP. |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules |
| DHCP | Static si dynamic IP allocation, DHCP Relay |
| DDNS | Suportat >25 furnizori de servicii, altii pot fi configurati manual. |
| Network backup | Mobile, VRRP, Wired options, fiecare dintre ele poate fi utilizat ca automatic Failover |
| SSHFS (optional) | Posibilitatea de a monta un sistem de fisiere remote prin protocolul SSH. |
| SECURITATE | |
| Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block |
| Firewall | Regulile preconfigurate ale firewall-ului pot fi activate prin intermediul WebUI, iar configurarea nelimitata a firewall-ului este posibila prin intermediul CLI; DMZ; NAT; NAT-T. |
| VLAN | Port si tag-based VLAN separation |
| Mobile quota control | |
| WEB filter | Blacklist pentru blocarea site-urilor nedorite, Whitelist pentru specificarea doar a site-urilor permise. |
| Access control | Control flexibil al accesului la pachete TCP, UDP, ICMP, filtru de adrese MAC. |
| VPN | |
| DMVPN | Metoda de construire a retelelor private virtuale IPsec scalabile |
| SSTP | SSTP client instance support |
| Stunnel | Proxy proiectat pentru a adauga functionalitatea de criptare TLS la clientii si serverele existente fara nicio modificare in codul programului. |
| Tinc | Tinc ofera criptare, autentificare si compresie in tunelurile sale. Suport pentru client si server. |
| WireGuard | WireGuard VPN client si server support |
| ZeroTier | ZeroTier VPN client support |
| OpenVPN | Mai multi clienti si un server pot functiona simultan, cu 27 de metode de criptare. |
| OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
| IPsec | IKEv1, IKEv2, cu 14 encryption methods pentru IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
| GRE | GRE tunnel, GRE tunnel over IPsec support |
| PPTP, L2TP | Instantele Client/Server pot rula simultan,L2TPv3, L2TP over IPsec support |
| CARACTERISTICI | |
| FLASH storage | 512 MB, SPI Flash |
| CPU | ARM Cortex-A7 1.2 GHz |
| RAM | 128 MB, DDR2 |
| MONITORIZARE & ADMINISTRARE | |
| Call | Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer |
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
| FOTA | Actualizare firmware de la server, notificare automata |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap |
| JSON-RPC | Management API over HTTP/HTTPS |
| MODBUS | MODBUS TCP status/control |
| FIRMWARE / CONFIGURARE | |
| WEB UI | Actualizare firmware din fisier, verificare firmware pe server, profiluri de configurare, backup de configurare |
| FOTA | Update FW |
| RMS | Actualizare firmware/configuratie pentru mai multe dispozitive odata |
| Keep settings | Actualizare firmware fara a pierde configuratia curenta |
| FIRMWARE CUSTOMIZATION | |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++ |
| Development tools | Pachetul SDK cu mediul de constructie furnizat |
| INTRARI/IESIRI | |
| Configurable I/O | 2 x Configurable Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 30 V detected as logic high. Open collector Configurable I/O output, max output 30 V, 300 mA. Configurable Inputs/Outputs are not available in TRB142*2**** |
| I/O juggler | Permite sa se stabileasca anumite conditii I/O pentru a initia un eveniment. |
| Output control | HTTP POST/GET, Schedule |
| Events | Email, RMS, SMS |
| ALIMENTARE | |
| Connector | 4-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max |
| Power consumption | < 5 W |
| PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |
| 1-Wire | 1 x 1-Wire interface on 16 pin connector |

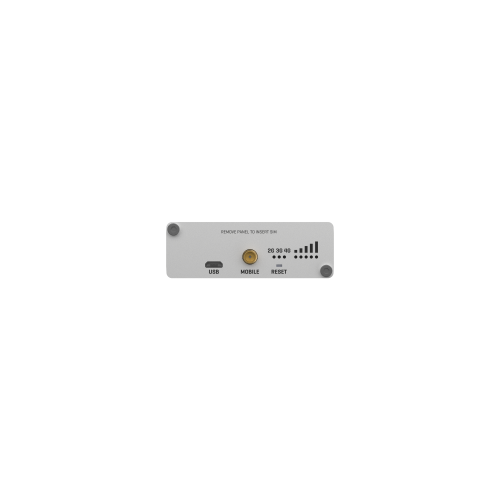

| Antennas | 1 x SMA for LTE |
| I/O’s | 2 x Configurable I/O pins on 4 pin power connector (I/O not available in TRB142*2****) |
| Status LEDs | 3 x connection type status LEDs, 5 x connection strength LEDs, 1 x Power LED |
| SIM | 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V |

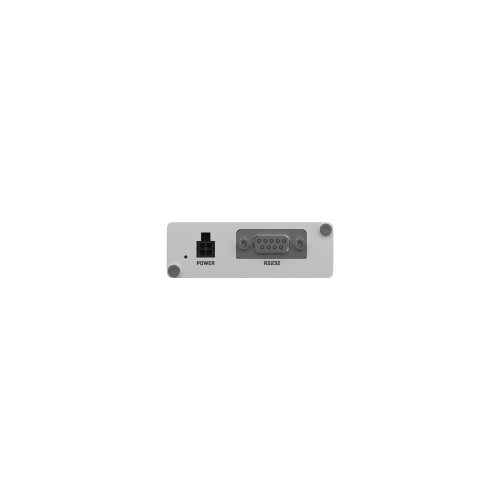

| Power | 1 x 4-pin power connector |
| USB | 1 x Virtual network interface via micro USB |
| RS232 | 1 x DB9 socket |
| Reset | Reboot/User default reset/Factory reset button |
| PHYSICAL SPECIFICATION | |
| Dimensions (W x H x D) | 74.5 x 25 x 64.4 mm |
| Casing material | Carcasa din aluminiu |
| Weight | 135 g |
| Mounting options | Sina DIN inferioara si laterala, Suprafata plana |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C pana la 75 °C |
| Operating humidity | 10% pana la 90%, fara condensare |
| Ingress Protection Rating | IP30 |
| REGULATORY & TYPE APPROVALS | |
| Regulatory | CE/RED, EAC, RoHS, WEEE |
