TRB246 este un gateway industrial 4G LTE echipat cu I/O-uri, interfete RS232, RS485 si Ethernet pentru solutii IoT care necesita versatilitate si suport fiabil pentru comunicatii M2M. Acest gateway are functionalitate dual SIM si suporta multiple protocoale, precum DNP3, DLMS si Modbus, esentiale pentru asigurarea unei transmisiuni fluide a datelor. Incastrat intr-o carcas? din aluminiu, acest gateway IoT de grad industrial poate tolera conditii extreme de mediu in productie, agricultura sau constructii.
| DATA TO SERVER | |
| Protocol | HTTP(S), MQTT, Azure MQTT, Kinesis |
| EMC EMISSIONS & IMMUNITY | |
| CS | EN 61000-4-6:2014 |
| DIP | EN 61000-4-11:2004 |
| EFT | EN 61000-4-4:2012 |
| ESD | EN 61000-4-2:2009 |
| RS | EN 61000-4-3:2006 + A1:2008 + A2:2010 |
| Standards | EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-1 V11.1.2, EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2 |
| IOT PLATFORMS | |
| Azure IoT Hub | Poate trimite device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type |
| Cloud of Things | Permite monitorizarea: Device data, Mobile data, Network info, Availability |
| Cumulocity | Permite monitorizarea: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength |
| ThingWorx | Permite monitorizarea: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| MODBUS RTU MASTER (RS232) | |
| Duplex | Full duplex |
| Number of data bits | De la 7 la 8 |
| Supported baud rates | De la 300 la 115200 |
| MODBUS TCP MASTER | |
| Supported data formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC) |
| Supported functions | 01, 02, 03, 04, 05, 06, 15, 16 |
| MODBUS TCP SLAVE | |
| Allow Remote Access | Permite accesul prin WAN |
| Custom registers | Cereri personalizate de blocare a registrului MODBUS TCP, care citesc/scriu intr-un fisier in interiorul routerului si pot fi folosite pentru extinderea functionalitatii MODBUS TCP Slave. |
| ID range | Respond to one ID in range [1;255] or any |
| MQTT GATEWAY | |
| MQTT Gateway | Permite trimiterea comenzilor si primirea datelor de la Maestrul MODBUS prin intermediul brokerului MQTT |
| SAFETY | |
| Standards | Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 |
| MOBILE | |
| APN | Auto APN |
| Passthrough | Routerul atribuie adresa sa IP WAN mobil altui dispozitiv din LAN |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Modul GSM | 4G (LTE) – LTE Cat 4 150 Mbps DL, 50Mbps UL; 3G - 42 Mbps DL, 5.76 Mbps UL; 2G - 296 Kbps DL, 236.8 Kbps UL |
| Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID |
| Bridge | Direct connection (bridge) intre mobile ISP si device on LAN |
| Black/White list | Operator black/white list |
| NETWORK | |
| QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
| VoIP passthrough support | Asistenti NAT pentru protocolul H.323 si SIP-ALG, permitand rutarea corecta a pachetelor VoIP. |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP si ICMP pentru link inspection |
| Firewall | Port forward, traffic rules, custom rules |
| DHCP | Static si dynamic IP allocation, DHCP Relay |
| DDNS | Suporta >25 service providers, altii pot fi configurati manual |
| Network backup | Mobile, VRRP, Wired options, fiecare poate fi folosit ca automatic Failover |
| SSHFS (optional) | Posibilitatea de a monta un sistem de fi?iere la distan?? prin protocolul SSH |
| SECURITATE | |
| Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block |
| Firewall | Regulile preconfigurate ale firewall-ului pot fi activate prin WebUI, configurarea nelimitata a firewall-ului prin CLI; DMZ; NAT; NAT-T |
| VLAN | Port si tag-based VLAN separation |
| Mobile quota control | Mobile data limit, customizable period, start time, warning limit, phone number |
| WEB filter | Blacklist pentru blocarea site-urilor nedorite, Whitelist pentru specificarea doar a site-urilor permise |
| Access control | Flexible access control din TCP, UDP, ICMP packets, MAC address filter |
| VPN | |
| DMVPN | Metoda de construire a re?elelor VPN IPsec scalabile |
| SSTP | SSTP client instance support |
| Stunnel | Proxy-ul este proiectat pentru a adauga functionalitate de criptare TLS la clientii si serverele existente fara nicio modificare in codul programului |
| Tinc | Tinc ofera criptare, autentificare si compresie in tunelurile sale. Suport pentru client si server |
| WireGuard | WireGuard VPN client si server support |
| ZeroTier | ZeroTier VPN client support |
| OpenVPN | Mai mul?i clienti si un server pot functiona simultan, 27 metode de criptare |
| OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
| IPsec | IKEv1, IKEv2, cu 14 encryption methods pentru IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
| GRE | GRE tunnel, GRE tunnel over IPsec support |
| PPTP, L2TP | Instantele Client/Server pot rula simultan, suport pentru L2TPv3 si L2TP peste IPsec. |
| CARACTERISTICI | |
| FLASH storage | 16 MB |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB |
| MONITORIZARE & ADMINISTRARE | |
| Call | Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer |
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
| FOTA | Firmware update din server, automatic notification |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap |
| JSON-RPC | Management API peste HTTP/HTTPS |
| MODBUS | MODBUS TCP status/control |
| FIRMWARE / CONFIGURARE | |
| WEB UI | Actualizare FW din fisier, verificare FW pe server, profiluri de configurare, backup de configurare |
| FOTA | Update FW |
| RMS | Update FW/configuration pentru multiple device-uri deodata |
| Keep settings | Actualizati firmware-ul fara pierderea configuratiei curente |
| FIRMWARE CUSTOMIZATION | |
| Operating system | RutOS (OpenWrt bazat pe Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++ |
| Development tools | Pachetul SDK cu mediul de constructie furnizat |
| LOCATION TRACKING | |
| Geofencing | Configurable multiple geofence zones |
| GNSS | GPS, GLONASS, BeiDou, Galileo si QZSS |
| NMEA | NMEA 0183 |
| NTRIP | NTRIP protocol (Networked Transport of RTCM via Internet Protocol) |
| Server software | Supported server software TAVL, RMS |
| SERIAL | |

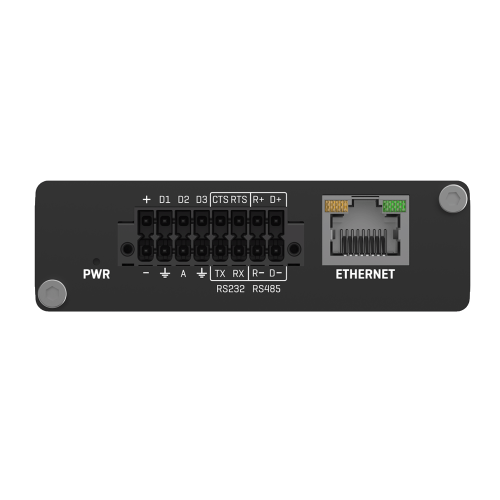

| RS485 | Terminal block connector: D+, D-, R+, R- (2 or 4 wire interface) |
| Serial functions | Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client |
| INTRARI/IESIRI | |
| I/O juggler | Permite stabilirea anumitor conditii de I/O pentru a ini?ia un eveniment |
| Input | 3 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high. 1 x Analog input (0 - 30 V) |
| Output | 3 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Events | Email, RMS, SMS |
| ALIMENTARE | |
| Connector | 4-pin industrial DC power socket |
| PoE (passive) | Posibilitatea de a alimenta prin portul LAN1, nu este compatibila cu standardele IEEE802.3af, 802.3at si 802.3bt, Mod B, 9 - 30 VDC. |
| Power consumption | < 5 W |
| PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |
| 1-Wire | 1 x 1-Wire interface on 16 pin connector |

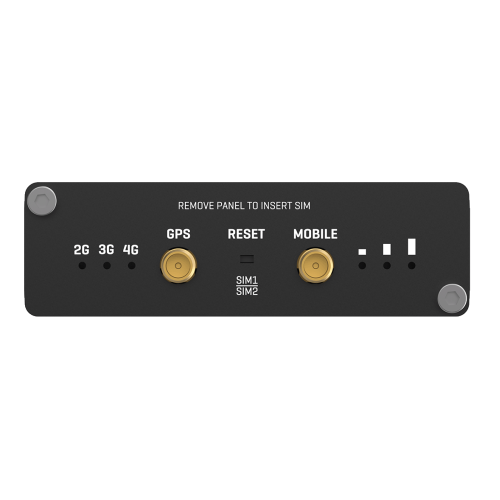

| Antennas | 1 x SMA for LTE |
| Ethernet | 1 x ETH port, 10/100 Mbps, compliance cu IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Status LEDs | 3 x connection type status LEDs, 5 x connection strength LEDs, 1 x Power LED |
| SIM | 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V |
| Power | 1 x 4-pin power connector |
| USB | 1 x Virtual network interface via micro USB |
| RS232 | Terminal block connector: TX, RX, RTS, CTS |
| Reset | Reboot/User default reset/Factory reset button |
| PHYSICAL SPECIFICATION | |
| Dimensions (W x H x D) | 83 x 25 x 74.2 mm |
| Casing material | Carcasa din aluminiu |
| Weight | 165 g |
| Mounting options | Sina DIN jos si lateral, Suprafata plana |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C la 75 °C |
| Operating humidity | 10% la 90% fara condensare |
| Ingress Protection Rating | IP30 |
| REGULATORY & TYPE APPROVALS | |
| Regulatory | CE/RED, EAC, RoHS, WEEE |

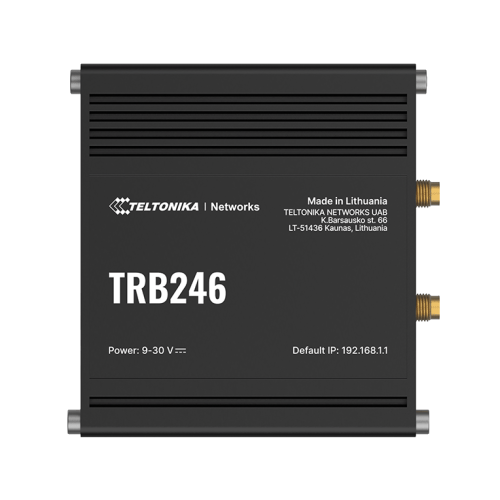

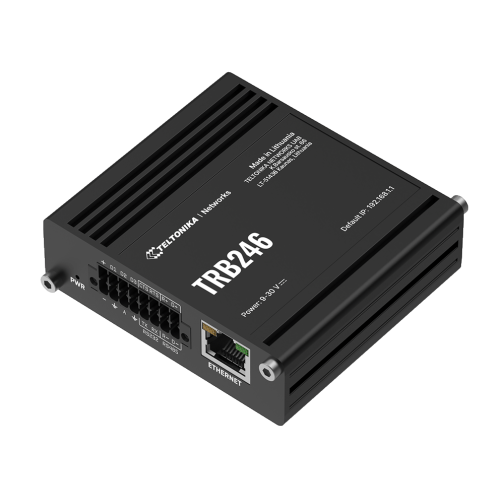

Teltonika TRB246
