TSW010 ofer? cea mai accesibil? modalitate de extindere a conectivit??ii de re?ea c?tre mai multe dispozitive Ethernet. Cinci porturi Ethernet de 10/100 Mbps asigur? o conectivitate stabil? ?i fiabil?, suficient? pentru majoritatea aplica?iilor industriale în care nu este necesar un throughput ridicat.
| PERFORMANCE SPECIFICATIONS | |
| Jumbo frame support | 2048 bytes |
| MAC address table size | 2K entries |
| SAFETY | |
| Standards | EN IEC 62368-1:2020+A11:2020 |
| ETHERNET | |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3x, 802.3az |
| LAN | 5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover |
| ALIMENTARE | |
| Connector | 2-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC |
| PoE (passive) | PoE pasiv peste perechi de rezerv?. Posibilitatea de alimentare prin portul ETH1, necompatibil cu standardele IEEE802.3af, 802.3at ?i 802.3bt, Mod B, 9 - 30 VCC. |
| Power consumption | Idle: 0.3 W / Max: 0.9 W |
| PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |
| Other | 1 x Grounding screw |
| Ethernet | 5 x RJ45 ports, 10/100 Mbps |
| Status LEDs | 1 x Power LED, 10 x LAN status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| PHYSICAL SPECIFICATION | |
| Dimensions (W x H x D) | 113.1 x 27.4 x 80.5 mm |
| Casing material | Carcasa din aluminiu |
| Weight | 146.5 g |
| Mounting options | Montare pe ?in? DIN sau pe perete (kit suplimentar necesar), plasare pe suprafa?? plan? |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C la 75 °C |
| Operating humidity | 10% pân? la 90%, f?r? condensare |
| Ingress Protection Rating | IP30 |
| REGULATORY & TYPE APPROVALS | |
| Regulatory | CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM |

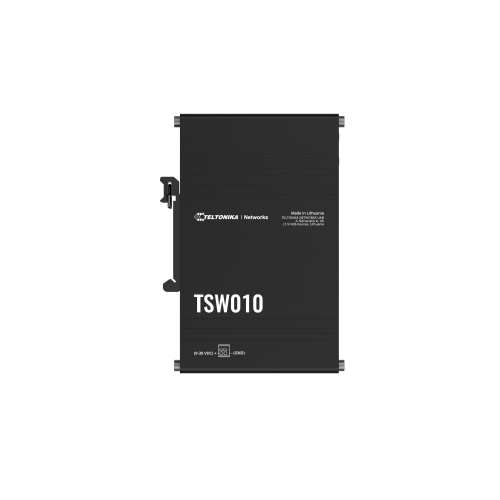

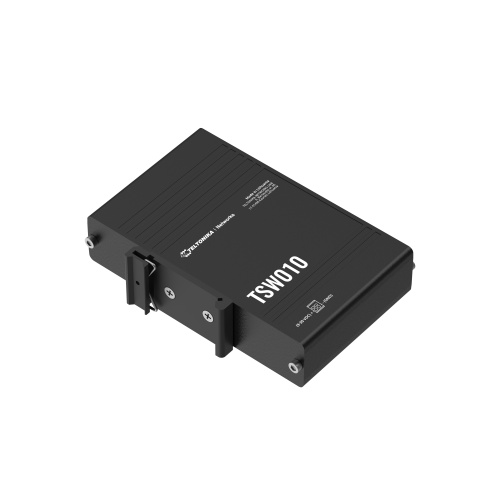

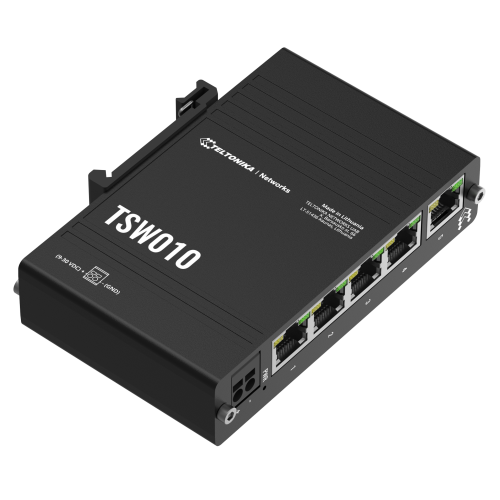

Teltonika TSW010
- Cod produs: TSW010
- Disponibilitate: 16
Etichete: TSW010
