TSW100 este un switch Gigabit Ethernet neadministrat care suport? Power-over-Ethernet. Clasificat ca echipament surs? de alimentare (PSE), centralizeaz? alimentarea cu energie, furnizând pân? la 30 de wa?i pe port ?i reducând efortul de instalare. Cinci porturi Gigabit Ethernet ofer? o solu?ie economic? de mare band? pentru o re?ea Ethernet industrial? securizat?.
| PERFORMANCE SPECIFICATIONS | |
| Bandwidth (Non-blocking) | 10 Gbps |
| MAC address table size | 2K entries |
| Packer buffer | 128 KB |
| PoE | |
| PoE Max Power per Port (at PSE) | 30 W |
| PoE ports | Port 1- 4 |
| PoE Power Budget (at PSE) | 120 W |
| PoE standards | 802.3af and 802.3at |
| ETHERNET | |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3ad |
| LAN | 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| ALIMENTARE | |
| PoE-out input voltage range | 44 – 57 VDC |
| Connector | 4-pin industrial DC power socket |
| Input voltage range | 7 – 57 VDC |
| Power consumption | Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W |
| PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |
| Other | 1 x Grounding screw |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 10 x LAN status LEDs |
| Power | 1 x 4-pin power connector |
| PHYSICAL SPECIFICATION | |
| Dimensions (W x H x D) | 115 x 32 x 95 mm |
| Casing material | Carcas? complet? din aluminiu |
| Weight | 350 g |
| Mounting options | Montare pe ?in? DIN sau pe perete (kit suplimentar necesar), plasare pe suprafa?? plan? |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C pana la 75 °C |
| Operating humidity | 10% pân? la 90%, f?r? condensare |
| Ingress Protection Rating | IP30 |

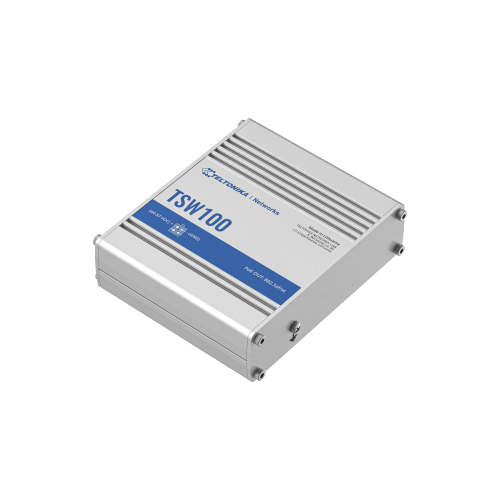

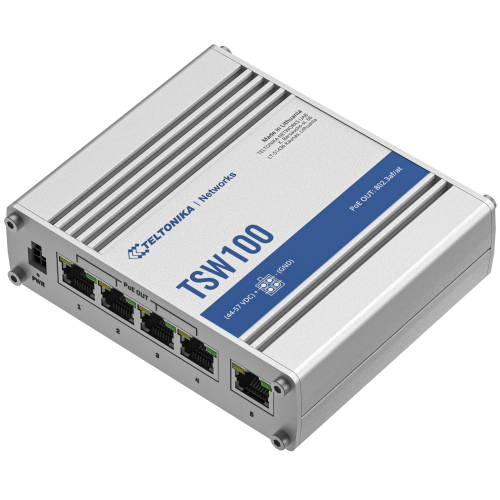

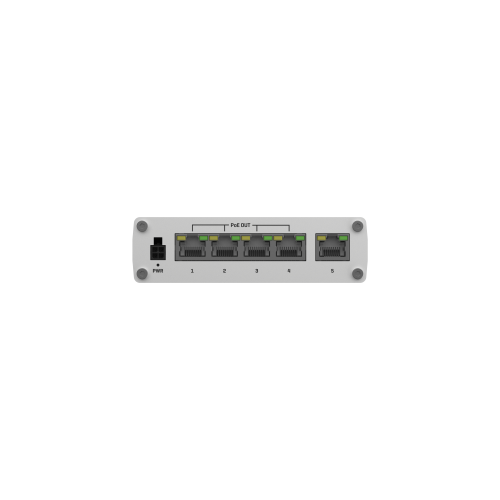

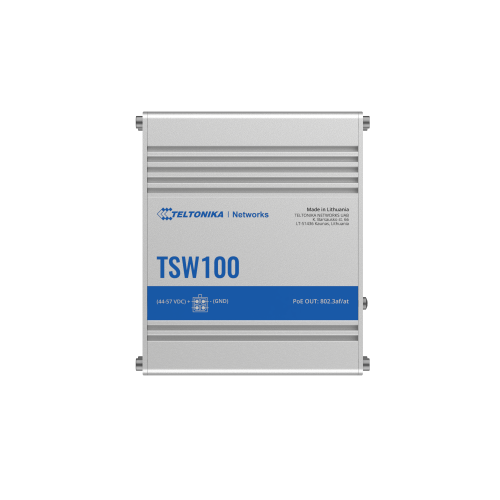

Teltonika TSW100
- Cod produs: TSW100
- Disponibilitate: 5
Etichete: TSW100
