TSW110 este un switch neprofesionalizat de nivel 2. Acest dispozitiv profesional compact, dar robust, permite aplica?ii industriale cu l??ime de band? ridicat?, asigurând o conexiune de date fiabil?. Dispune de cinci porturi Ethernet Gigabit pentru conectarea echipamentelor la re?ea ?i suport? o gam? larg? de tensiuni de alimentare (9-30 V).
| PERFORMANCE SPECIFICATIONS | |
| Bandwidth (Non-blocking) | 10 Gbps |
| MAC address table size | 2K entries |
| Packer buffer | 128 KB |
| ETHERNET | |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3ad |
| LAN | 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| ALIMENTARE | |
| Connector | 4-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC |
| PoE (passive) | Posibilitatea de a se alimenta prin porturile ETH1, necompatibil cu standardele IEEE802.3af, 802.3at ?i 802.3bt, Modul B, 9 - 30 VDC. |
| Power consumption | < 0.4 W/ < 1.8 W |
| PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |
| Other | 1 x Grounding screw |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 10 x LAN status LEDs |

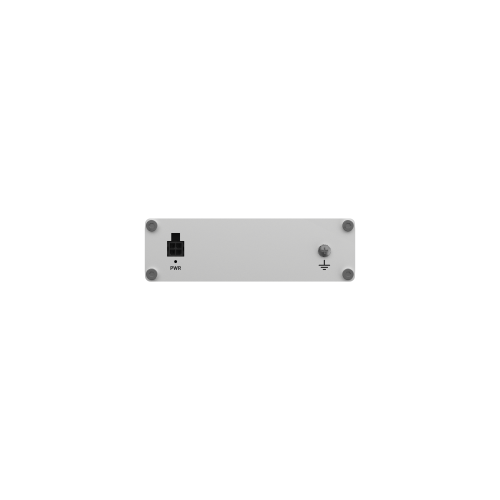

| Power | 1 x 4-pin power connector |
| PHYSICAL SPECIFICATION | |
| Dimensions (W x H x D) | 100 x 30 x 85 mm |
| Casing material | Carcas? complet? din aluminiu |
| Weight | 227 g |
| Mounting options | Montare pe ?in? DIN sau pe perete (kit suplimentar necesar), plasare pe suprafa?a plan? |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C la 75 °C |
| Ingress Protection Rating | IP30 |

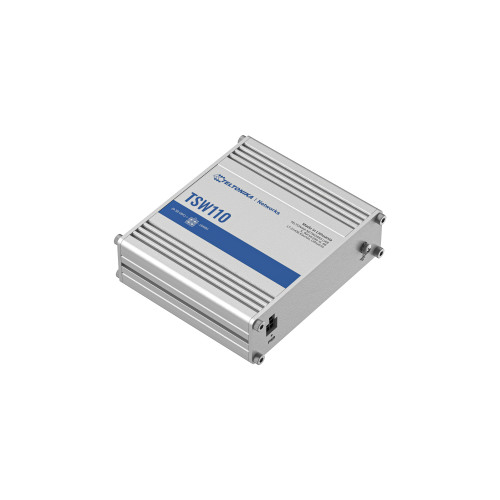

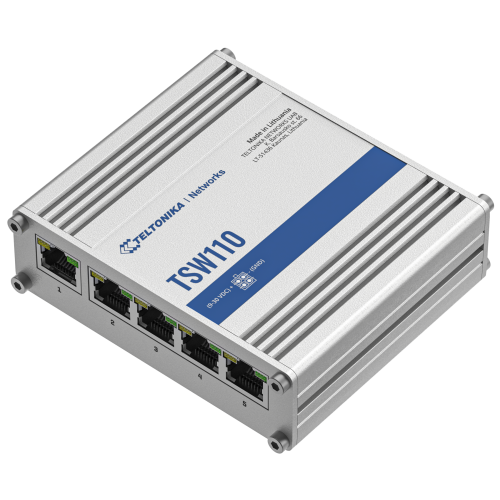

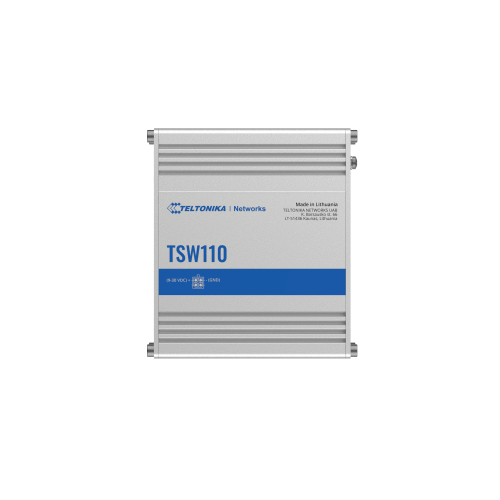

Teltonika TSW110
- Cod produs: TSW110
- Disponibilitate: 5
Etichete: TSW110
