TSW200 este un switch industrial neadministrat cu 2 porturi SFP pentru comunica?ii prin fibr? optic? pe distan?e lungi ?i 8 porturi Gigabit Ethernet care suport? standardele IEEE802.af ?i IEEE802.3at Power-over-Ethernet. Clasificat ca echipament de alimentare (PSE), permite centralizarea aliment?rii cu energie, furnizând pân? la 30 de wa?i per port ?i reducând efortul de instalare a aliment?rii.
| PERFORMANCE SPECIFICATIONS | |
| Bandwidth (Non-blocking) | 20 Gbps |
| Jumbo frame support | 9216 bytes |
| MAC address table size | 2K entries |
| Packer buffer | 128 KB |
| PoE | |
| PoE Max Power per Port (at PSE) | 30 W |
| PoE ports | Port 1 - 8 |
| PoE standards | 802.3af si 802.3at |
| Total PoE Power Budget (at PSE) | 240 W |
| ETHERNET | |
| Fiber | 2 x SFP ports |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3ad |
| LAN | 8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| ALIMENTARE | |
| PoE-out input voltage range | 44 – 57 VDC |
| Connector | 2-pin industrial DC power socket |
| Input voltage range | 7 – 57 VDC |
| Power consumption | Idle: 1.81 W / Max: 5.5 W / PoE Max: 245.5 W |
| PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |
| Fiber | 2 x SFP ports |
| Other | 1 x Grounding screw |

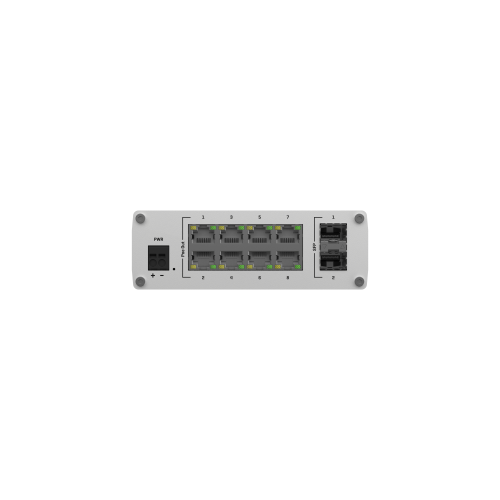

| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 16 x LAN status LEDs 2 x SFP status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| PHYSICAL SPECIFICATION | |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Casing material | Carcas? complet? din aluminiu |
| Weight | 517 g |
| Mounting options | Montare pe ?in? DIN sau pe perete (kit suplimentar necesar), plasare pe suprafa?? plan?. |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C pana la 75 °C |
| Operating humidity | 10% pana la 90% fara condensare |
| Ingress Protection Rating | IP30 |

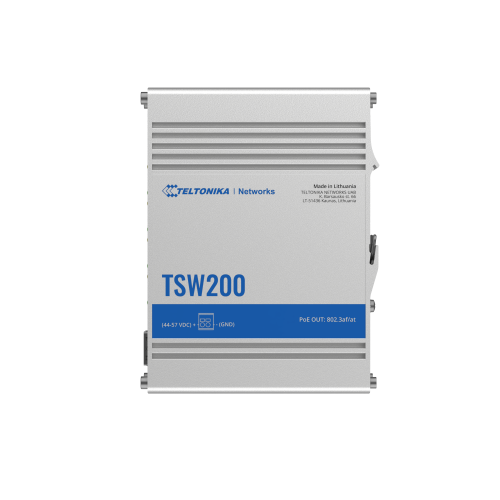

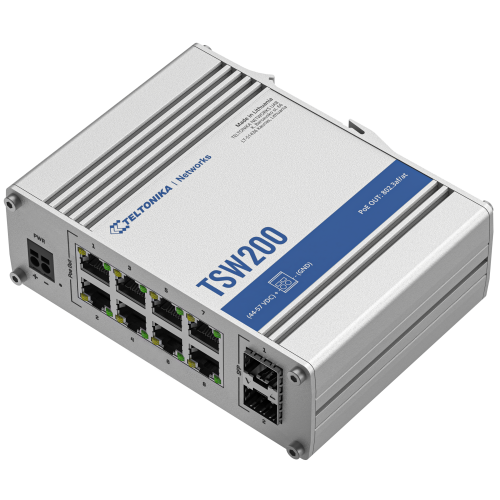

Teltonika TSW200
