TSW212 este un switch Ethernet gestionat de nivel 2 (L2) cu functii suplimentare de nivel 3 (L3), cum ar fi suportul pentru client DHCPv6 si rutare IPv6 statica. Acest switch suporta protocoale, inclusiv EtherNet/IP, PROFINET si MRP, si are 8 porturi Gigabit Ethernet si 2 porturi SFP pentru a asigura o comunicatie robusta pe distante lungi prin fibra optica.
| PERFORMANCE SPECIFICATIONS | |
| Bandwidth (Non-blocking) | 20 Gbps |
| Jumbo frame support | 10000 bytes |
| MAC address table size | Intrari 8K |
| Packer buffer | 128 KB |
| ETHERNET | |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3ad |
| LAN | Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover |
| ALIMENTARE | |
| Connector | 2-pin industrial DC power socket |
| Input voltage range | 7 – 57 VDC |
| Power consumption | Idle: ~1.03 W / Max: 3.71 W |
| PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |

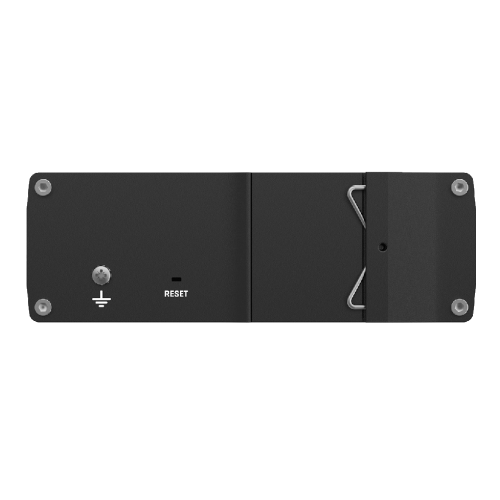

| Other | 1 x ?urub de împ?mântare |

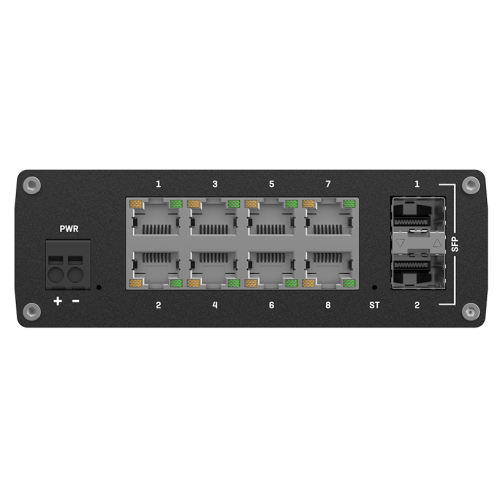

| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| PHYSICAL SPECIFICATION | |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Casing material | Carcasa din aluminiu |
| Weight | 615 g |
| Mounting options | Montare pe sina DIN sau pe perete (kit suplimentar necesar), plasare pe suprafata plana |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C la 75 °C |
| Operating humidity | 10% la 90% fara condensare |
| Ingress Protection Rating | IP30 |

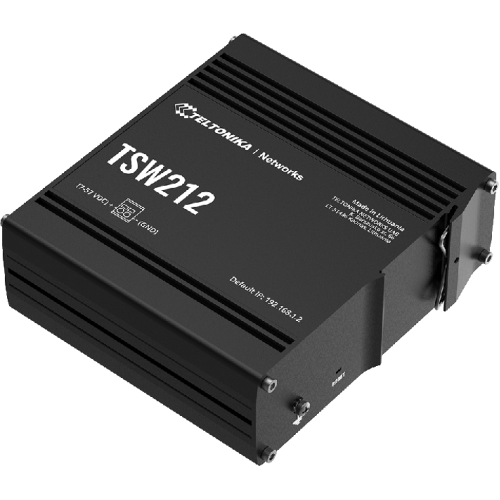

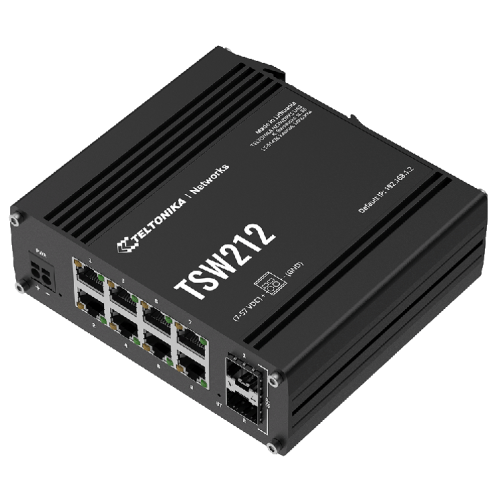

Teltonika TSW212
- Cod produs: TSW212
- Disponibilitate: 3
Etichete: TSW212
